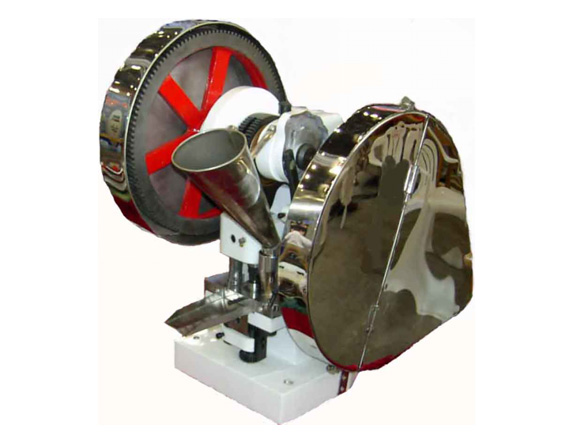

TDP series Single punch tablet press
Descriptions
This machine is a small desktop type electric tablet press, and it also can be hand-operated, easy be operated and maintained.
This machine can press round or irregular tablets from various granular materials. It is applicable to trial manufacture or batch produce in small scale in lab, hospital and science research institutes etc.
Features
- Glossy finished stainless steel belt cover, as clean as a whistle, no pollution, meets the GMP standard.
- Only a pair of punch and die can be erected on this machine, both filling depth of materials and thickness of tablet are adjustable.
- Larger diameter tablets up to 25mm (TDP-6).
- Press both round and irregular tablets.
- Power supply: AC, 220V/50HZ or 110V/60HZ 1 phase or customization.
- Free with a pair of punch and die.
- High precision of filling, lower consumption of materials, the minimum consumption of lab materials is just 200 g.
- Small volume, light weight, works smoothly and low noise.
Technical Parameters
Model | TDP-1.5 | TDP-5 | TDP-6 |
Max. pressure (KN) | 15 | 50 | 60 |
Max. diameter of tablet (mm) | 12 | 20 | 25 |
Max. depth of fill (mm) | 12 | 18 | 16 |
Max. thickness of tablet (mm) | 6 | 6 | 10 |
Production capacity (tablets/hour) | 5000 | 5000 | 4000 |
Power (KW) | 0.25 | 0.55 | 1.1 |
Power supply | AC,220V/50HZ or 110V/60HZ 1 phase | ||
Net weight (kg) | 92.5 | 125 | 153 |
Overall size (mm) | 570x380x630 | 650x440x650 | 580x600x700 |
1. Main supplier of components:
The motor is WEITELI China
The stainless steel is SUS 304 from BAOSREEL Shanghai, China.
The others are carbon steel.
2. Delivery time:
Round dies ------ 7 days after receiving the payment.
Irregular dies ----- 10 days after receiving the payment.
3. Payment methods:
T/T or Western Union payment, and full payment before shipping.
4. Guarantee:
One year quality guarantees and free with spare parts for one year.
5. After sales service:
The English user manual
Circuit diagram
