ZPW19B

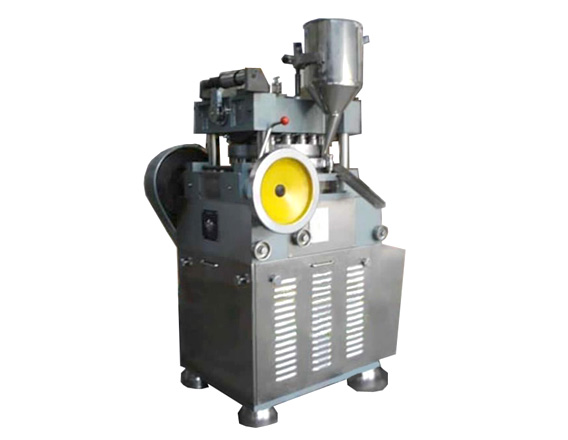

ZPW19B Rotary tablet press



Descriptions

This machine is used to press the granular raw material into the round tablets or various geometric shaped tablets, it is especially caters for small-batch production. This machine is mainly used in pharmaceutical, chemical, food, electronic industry and so on.



Scope of application

- Pharmaceutical: Chinese tablets, Western medicine, plain films, chewable tablet, calcium tablet, buccal tablet, propolis tablet (bee propolis tablet), spiraling tablet, effervescent tablet pioneer, camphor ball etc.
- Foodstuff: candy pieces, flake coffee, chicken essence chunk, seasoning chunk, glucose tablet, milk powder candy etc,.
- Agriculture: wafer feed, fertilizer chunk, animal food etc.
- Chemical: bleaching powder, ceramic powder, powder metallurgy, magnetic materials, antiseptic, powdered carbon£¬molecular sieve etc.
- Electronic: carbon brush, button cell, electronic component etc.



Technical Parameters

Die no.

19 sets

Max. pressure of tablet

80-100 KN

Max. dia. of tablet

40 mm

Max. depth of filling

28 mm

Max. throughput

22800 pc/h

Motor

  3 KW 380/50v/Hz

Outline dim.(L x W x H)

1100 x 1200 x 1700mm

Net Weight

1280 kg
