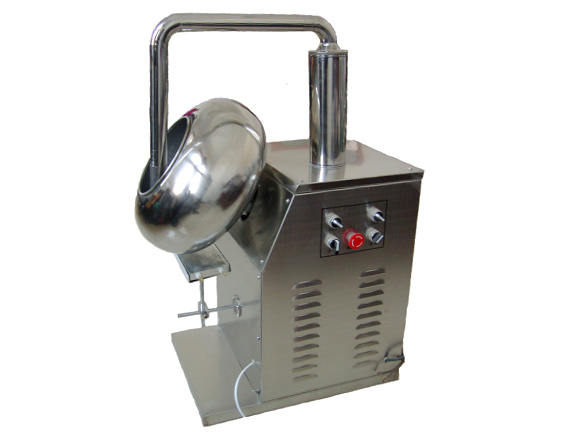

BY series Water chestnut mode coating machine
Descriptions
This machine is widely used in the coating, glazing and granulation of the pharmacy trade. It also can be used to ball object mould shape make in foodstuff and chemical industries.
Features
- This coating pot is made of stainless steel, meet the GMP standard.
- Transmission steady, performance reliable.
- Convenient to wash and maintain.
- High thermal efficiency.
- It can produce the technological requirement and regulate coating in one pot of angle at the same time, and is easy to use.
Technical Parameters
Model | BY200 | BY300 | BY400 | BY600 |
Diameter of pot(mm) | 200 | 300 | 400 | 600 |
Speed of pot(r/min) | 0-46 | 0-46 | 0-46 | 0-40 |
Motor power(KW) | 0.25 | 0.37 | 0.55 | 0.55 |
Heating wire power(W) | 500 | 500 | 800 | |
Blower power(W) | 40 | 40 | 60 | |
Capacity(kg/time) | 1 | 2 | 5 | 15 |
Power of other heating(W) | 500 | 500 | 600 | |
Weight(kg) | 60 | 65 | 70 | 120 |
Overall size(cm) | 35x40x68 | 49x59x77 | 49x59x81 | 70x54x130 |
Model | BY800 | BY1000 | BY1250 |
Diameter of pot(mm) | 800 | 1000 | 1250 |
Speed of pot(r/min) | 0-32 | 0-32 | 0-28 |
Motor power(KW) | 1.1 | 1.5 | 2.2 |
Heating wire power(W) | 1000 | 1000 | 1000 |
Blower power(W) | 250 | 250 | 250 |
Capacity(kg/time) | 30-50 | 50-70 | 80-150 |
Power of other heating(W) | 1000x2 | 1000x2 | 1000x2 |
Weight(kg) | 240 | 280 | 450 |
Overall size(cm) | 93x90x150 | 110x110x160 | 142x125x165 |
