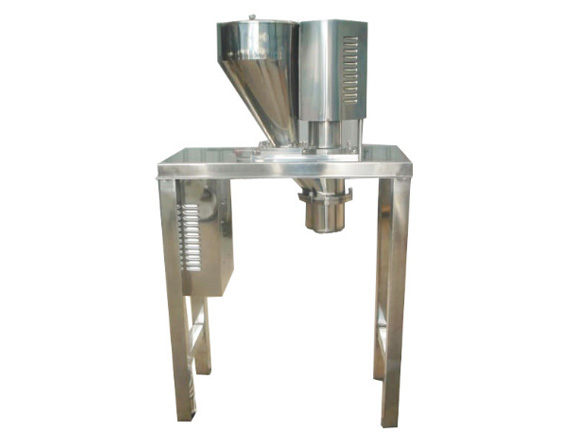

Grinding and granulating machine FZ series

Scope of application

Pharmaceutical: Grinding raw materials, granulating wet and dry materials, unqualified tablets to be recycled can be granulated according to the requirement of granularity.
Foodstuff: Grinding of biscuit for recycling. Others: Grinding and granulating of rough raw material and lump material.

Principle of work

The materials to be processed enters into the feed inlet of grinding and granulating machine, drops into the conical sieve chamber. The rotary knife plays a whirling action to the material, and throws the granules into the sieve mesh surface by centrifugal force. Granules are ground into particles by the shearing action produced by the rotary knife and the sieve mesh, and discharged through the sieve apertures. The size of ground particles can be adjusted by the sieve mesh number, the gap between rotary knife and sieve mesh, and the rotary speed.

Features

1. Thoroughly solving the tough problem of material contaminated by the debris of worn sieve mesh in a pendulum-type granulating machine.
2. The unique patented shaft sealing technology ensures no leakage of lubrication oil.
3. Easy to control granularity.
4. No retention dead corner, no material overheating.
5. Less dust, no vibration, low noise.
6. High efficiency, energy saving, large production capacity.
7. Attractive appearance, easy to clean.
8. A-type machine apply to the work requirements of 100-grade workshop.

Technical Parameters
