JMS-110DBR, 130DBR

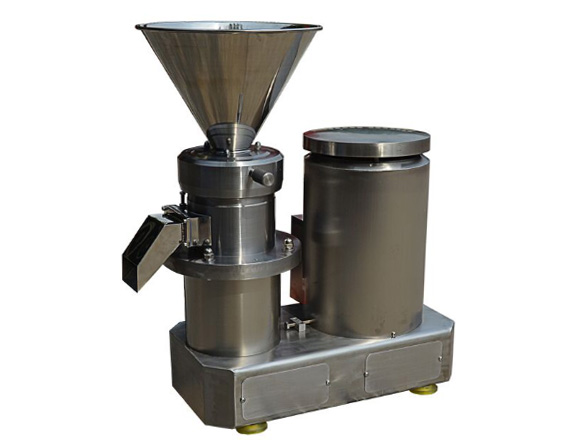

JMS-110DBR, JMS-130DBR colloid mill for making peanut butter



Descriptions

Emulsification, homogeneity, dispersal, blend, smash and grind of emulsion materials.
The machine is widely used in food, medicine, chemical, commodity, pottery, asphalt, Detonator and coal industries.



Features

JMS series of products, having compact design, handsome appearance, good airproof, steady capability, easy operation, high efficiency and easily cleaning, it is the perfect Equipment treating refined material.
All parts contacting the material except for special type motor and partial parts of JMS Series of products is made of high-intensity stainless steel. Pivotal living and dead The base is made of 304# stainless steel, too.
Millstones are intensified by heat treatment, so there is good anti-cauterization and anti-Attrition and the material aren't polluted.



Technical Parameters

Model

JMS-110DBR

Capacity

150  -  400 kg/h

Emulsification granularity

2 - 50 um

Power supply

AC,380V/50HZ 3 phase or customization

Power

11KW

The speed of the motor

1460  -  2890 r/min

Oversize size

750x400x900 mm

Weight

260 kg

Milling diameter

110 mm

Cooling type

Water-cool



Model

JMS-130DBR

Capacity

200  -  600 kg/h

Emulsification granularity

2 - 50 um

Power supply

AC,380V/50HZ 3 phase or customization

Power

15 KW

The speed of the motor

1460  -  2930 r/min

Oversize size

1000x460x1000 mm

Weight

380 kg

Milling diameter

130 mm

Cooling type

Water-cool
