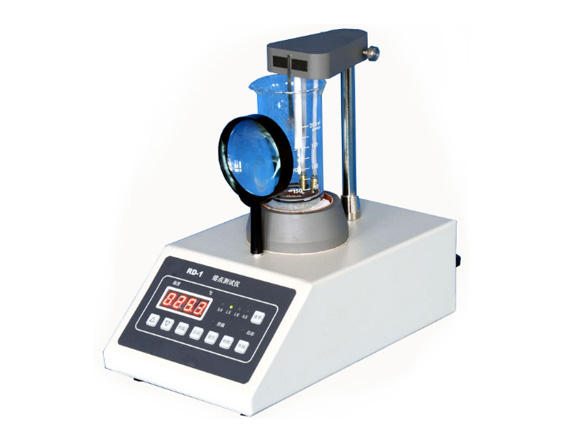

RD-1 melting point tester
Descriptions
Melting point is the temperature of something turning to liquid from solid. Testing it is the main method to detect some characters, such as purity etc.
The tester is suitable for testing melting point of drug, spice and dye etc.
Applicable standard:
- National standard(Chinese codex)2005
- Corporate standard(Melting point tester)Q/12XQ0185-2007
Features
- Testing the temperature with high-precision sensor, emending nonlinear error Automatically.
- Using auto frequency-conversion control technology with high accuracy in controlling Temperature and little linear error in heating speed.
- Auto-memorizing and nothing preset data and melt point, holding without power.
- Auto magnetism stirrer, with the bath oil even in temperature.
- Auto-preset temperature, auto-heat, display preset and real-time data alternately in time.
- Automation: auto-test, auto-diagnose, auto-alarm.
Technical Parameters
The range of melting point | 50-270 degree Celsius |
Accuracy | +/-0.5 degree Celsius |
Usage temperature | 15-35 degree Celsius |
The range of preset temperature | 50-260 degree Celsius |
Oil bath | Methyl silicone oil |
Oil bath cup | 250 ml high beaker |
Rate | 0.5, 1.0, 1.5, 3.0 degree Celsius/min |
Accuracy of rate | <10% |
Power of heater | 200W |
Power supply | AC,220V/50HZ 1 phase or 110V/60HZ 1 phase |
Weight | 6 kg |
Overall size | 320x180x290 mm |
RY-1 melting point tester
Descriptions
Melting point is the temperature of something turning to liquid from solid. Testing is the main method to detect some characters such as purity etc.
The tester is suitable for testing melting point of drug, spice and dye etc.
Applicable standard:
Corporate standard(Melting point tester)Q/12XQ0185-2007
Features
- Test temperature with standard mercury thermometer.
- Adjust heating voltage by a knob.
- Display voltage with an analog voltmeter.
- Observe melting sample by a magnifier.
- Test three samples at the same time.
Technical Parameters
The range of melting point | 50-300 degree Celsius |
Accuracy | +/-1 degree Celsius |
Usage temperature | 15-35 degree Celsius |
Rate | 1.0, 2.0, 4.0, 6.0 degree Celsius/min |
Power | 100 W |
Power supply | AC,220V/50HZ or 110V/60HZ 1 phase |
Weight | 3 kg |
Overall size | 190x120x200 mm |
RY-2 melting point tester
Descriptions
Melting point is the temperature of something turning to liquid from solid. Testing it is the main method to detect some characters such as purity etc.
The tester is suitable for testing melting point of drug, spice and dye etc.
Applicable standard:
Corporate standard(Melting point tester)Q/12XQ0185-2007
Features
- Test temperature with standard mercury thermometer.
- Adjust heating voltage by keystroke.
- Display voltage with a digital voltmeter.
- Observe melting sample by a magnifier.
- Test three samples at the same time.
Technical Parameters
The range of melting point | 50-300 degree Celsius |
Accuracy | +/-1 degree Celsius |
Usage temperature | 15-35 degree Celsius |
Rate | 1.0, 2.0, 4.0, 6.0 degree Celsius/min |
Power | 100W |
Power supply | AC,220V/50HZ or 110V/60HZ |
Weight | 3 kg |
Overall size | 190x120x200 mm |
