ND series

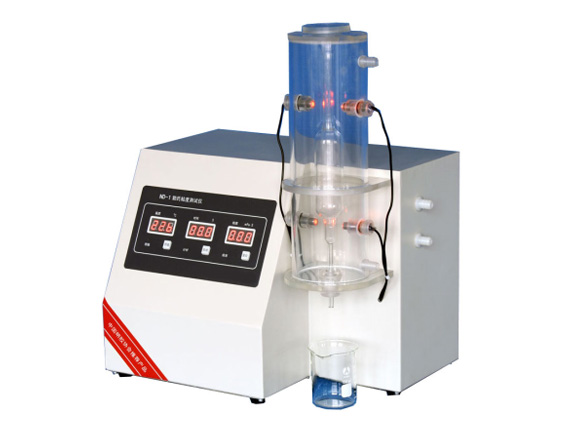

ND-1, ND-2 Bloom viscosity tester







Descriptions

The testers are used for detecting bloom viscosity of gelatin.


Applicable standards:
- National standard (Food additive Gelatin) GB6783-94
- National standard (Hard gelatin capsule for medicine) GB1371-92
- Vocation standard (Gelatin for medicine) QB2354-98
- Corporate standard (Bloom viscosity tester) Q/12 XQ0193-2004



Features

- A MPU is used to control all operations in Bloom viscosity tester. It works in bloom mode and the viscosity data is displayed by LED.
- High temperature accuracy, even temperature of the bath liquid.
- Using capillary and precise photo-electricity transducer.
- Automatically calculating time and viscosity.
- Auto-timing, auto-alarming, auto-testing continually.
- Automation: auto-test, auto-diagnose, auto-alarm.



Technical Parameters

Model

ND-1

ND-2

Tester range

0-9.99 mPa.s

0-99.9 mPa.s

Test accuracy

+/- 0.05 mPa.s

+/- 0.3 mPa.s

Temperature control

60.0 degree Celsius

Temperature control accuracy

+/- 0.1 degree Celsius

Time range

0-999.9 s

Time accuracy

+/- 0.1 s

Volume

100 ml

Volume accuracy

+/- 0.5 ml

Recital distance

150-154 mm

Power

600W

Power supply

AC,220V/50HZ or 110V/60HZ

Weight

12 kg

Overall size

400x300x510 mm
