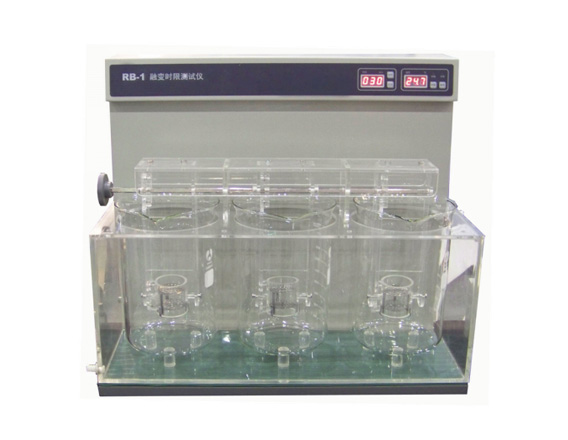

RB-1 Thaw tester
Descriptions
It is used for testing thaw of the suppository and vaginal tablet etc.
Applicable standard:
National standard (Chinese codex) /2005/
Features
- The three net frames can be synchronously turned artificially.
- Hyaline sleeve and net frame are made of stainless steel. The overturn Machine is up-to date and it can be turned flexibly.
- A MPU is used to automatically control the temperature.
- The magnetism-pumped circular water current can heat the system evenly, and the bath liquid can achieve an equal temperature.
- Temperature and time controlled automatically.
- Parameters can be preset at anytime. The preset and real data can be displayed alternately in time.
- Automation: auto-test, auto-diagnose, auto-alarm.
- Indicating and forecasting when turning over at preset time, alarming at fault.
Technical Parameters
Numbers of sleeve | 3 units |
Hyaline sleeve | High 60 mm inside diameter 52 mm |
The net frame of stainless steel | Two pieces diameter 50 mm each 39 holes of 4 mm |
Turn frequency | 1/10 min |
Automatic time range | (10-900) min |
Temperature range | Room temperature to 45.0 degree Celsius |
Accuracy of controlling temperature | +/- 0.5 degree Celsius |
Capacity of beaker | 4 L |
Power | 1000 W |
Power supply | 220V/50HZ or 110V/60HZ 1 phase |
Overall size | 680(L)x380(W)x580(H) mm |
