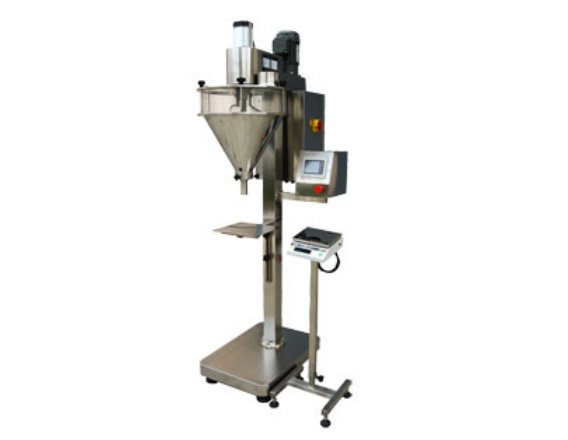

DCS-1A-22 Semiautomatic powder filling machine
Descriptions
This type can do measuring and filling work. Due to the special professional design, so it is suitable to the fluidic or low-fluidity materials, like condiment, cosmetic, coffee powder, solid drink, pharmaceuticals, agriculture pesticide, granular additive, dyestuff, and so on.
Features
- Stainless steel structure; Quick disconnecting hopper could be washed easily without tools.
- Servo motor drive screw.
- PLC, Touch Screen & Weighing module control.
- Weight feedback and proportion track get rid of the shortage of variable packaged weight for various proportion of different material.
- To save all products' parameter formula for later use, save 10 sets at most.
- Replacing the auger parts, it is suitable for material from super thin powder to granule.
Technical Parameters
Filling Weight | 1 - 500g |
Filling Accuracy | ≤ 100g,<±2%; 100 - 500g, ≤±1% |
Filling Rate | 40 - 120 times/min |
Power Supply | 3P / 220V-415V 50/60Hz |
Total Power | 0.93KW |
Total Weight | 130Kg |
Overall Dimensions | 800x790x1900mm |
Hopper Volume | 25L (Enlarged size 35L) |
Optional devices:
- Leakproof acentric device
- Pneumatic flap
- Dust collecting cover
- Level Split hopper
- Lift-fall device
