DCS-1B-321

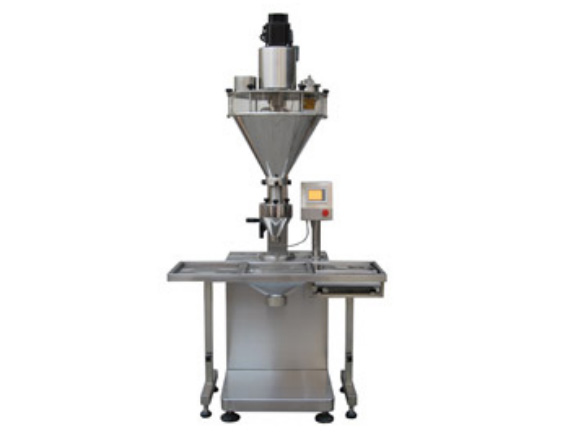

DCS-1B-321 Semiautomatic powder filling machine



Descriptions
This type can do measuring and filling work. Due to the special design, so it fits more to the liquid or low-fluidity materials, like milk powder, albumen powder, solid drink, white sugar, dextrose, coffee powder, pharmaceuticals, granular additive, dyestuff, and so on.



Features

- Stainless steel structure; the hopper could be washed easily without tools.
- Servo motor drive screw.
- PLC, Touch screen & weighing system control level split hopper.
- Weight feedback and proportion track get rid of the shortage of variable packaged weight for various proportion of different material.
- To save all product's parameter formula for later use. Save 10 sets at most.
- Replacing the auger parts, it is suitable for material from super thin powder to granule.



Technical Parameters

Metering Mode

Auger rotation filling traced by weighing feedback

Packaging Weight

10 - 2000g(The screw attachment is to be changed)

Packaging Accuracy

≤ 100g, ≤±2%; 100 - 500g, ≤±1%; ≥500g, ≤±0.5%

Filling Rate

40 - 120 times/min

Power Supply

3P /220-415V 50/60Hz

Total Power

1.4KW

Total Weight

280kg

Overall Dimensions

1140x710x2200mm

Hopper Volume

50L(Enlarged size 70L)
