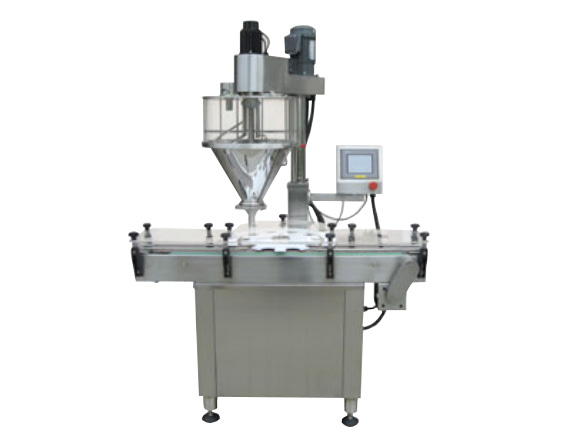

DCS-2A-2 Automatic powder filling machine
Descriptions
The Model machine could do work of measuring, bottle holding and filling, etc, it can constitute the whole set can filling work line with other related machines, and suitable for filling kohl, glitter powder, pepper, cayenne pepper, milk powder, ice flour, albumen powder, soy milk powder, coffee powder, additive, essence and spice, etc.
Features
- Stainless steel structure, level split hopper could be washed easily without tools.
- Servo motor drive auger.
- Servo controlled turntable with stable performance.
- PLC, touch screen and weighing module control.
- With adjustable height-adjustment handwheel at reasonable height, easy to adjust the head position.
- With pneumatic can lifting device to assure the material not spilling out when filling.
- Weight-chosen device, to assure each product be qualified, so to leave the latter cull eliminator.
- To save all products' parameter formula for later use, save 10 sets at most.
- When changing the auger accessories, it is suitable for materials ranging from super fine powder to small granule.
Technical Parameters
Container Size | φ 20-85mm, H 10-150mm |
Filling Weight | 1 ~ 500g |
Filling Accuracy | ≤ 100g, ≤±2%; 100 ~ 500g, ≤±1% |
Filling Speed | 15 - 60 bottles/min |
Power Supply | 3P /220 - 415V 50/60Hz |
Total Power | 1.8KW |
Air Supply | 6kg/cm2; 0.05m3/min |
Total Weight | 250Kg |
Overall Dimensions | 1000x720x1800mm |
Hopper Volume | 35L |
Optional device:
- Leakproof acentric device
- Pneumatic flap
- Dust collecting cover
- Vibrating device
