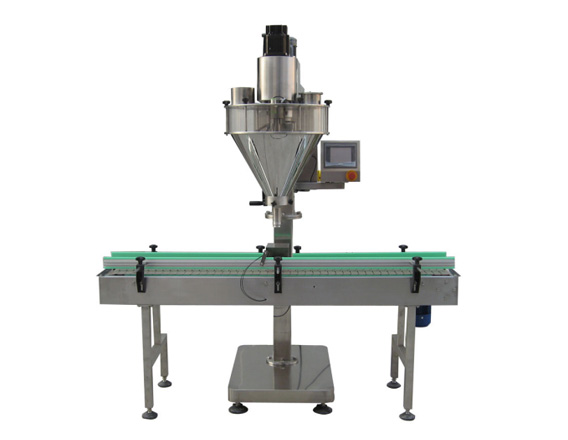

DCS-2B-1 Automatic Powder Filling Machine
Descriptions
This Machine is a complete, economical solution to your filling production line requirements.can measuring and filling powder and granular. It consists of the Filling Head, an independent motorized chain conveyor mounted on a sturdy, stable frame base, and all necessary accessories to reliably move and position containers for filling, dispense the required amount of product, then quickly move the filled containers away to other equipment in your line (e.g., cappers, labelers, etc.).it fits more to the fluidic or low-fluidity materials, like milk powder, albumen powder, pharmaceuticals, condiment, solid drink, white sugar, dextrose, coffee, agriculture pesticide, granular additive, and so on.
Features
- Stainless steel structure; The quick disconnecting hopper could be washed easily without tools.
- Servo motor drive screw.
- PLC, Touch screen and weighing module control.
- To save all product's parameter formula for later use, save 10 sets at most.
- Replacing the auger parts, it is suitable for material from super thin powder to granule.
- Include handwheel of adjustable height.
Technical Parameters
Dosing mode | Directly dosing by auger |
Filling weight | 10 - 5000g |
Filling Accuracy | ≤ 500g, ≤±1%; >500g, ≤±0.5% |
Filling Speed | 15 - 40 bottles per min |
Power Supply | 3P AC208 - 415V 50/60Hz |
Air Supply | 6 kg/cm2 0.05m3/min |
Total power | 1.6Kw |
Total Weight | 300kg |
Overall Dimensions | 2000x970x2030mm |
Hopper Volume | 50L(Enlarged size 70L) |
Deploy List
No. | Name | Model Specification | RODUCING AREA, Brand |
1 | Stainless steel | SUS304 | China |
2 | PLC | FBs-14MAT | Taiwan Fatek |
3 | HMI | Schneider | |
4 | Servo motor | TSB13102B-3NTA | Taiwan TECO |
5 | Servo driver | TSTEP30C | Taiwan TECO |
6 | Agitator motor | GV-28 0.4kw,1:30 | Taiwan WANSHSIN |
7 | Switch | LW26GS-20 | Wenzhou Cansen |
8 | Emergency switch | Schneider | |
9 | EMI Filter | ZYH-EB-10A | Beijing ZYH |
10 | Contactor | CJX2 1210 | Wenzhou CHINT |
11 | Hot relay | NR2-25 | Wenzhou CHINT |
12 | Circuit breaker | Schneider | |
13 | Relay | MY2NJ 24DC | Japan Omron |
14 | Switching power supply | Changzhou Chenglian | |
15 | Photo sensor | BR100-DDT | Korea Autonics |
16 | Level sensor | CR30-15DN | Korea Autonics |
17 | Conveyor motor | 90YS120GY38 | Xiamen JSCC |
18 | Conveyor Gear box | 90GK(F)25RC | Xiamen JSCC |
19 | Pneumatic cylinder | TN16x20-S | Taiwan AirTAC |
20 | Fiber | RiKO FR-610 | Korea Autonics |
21 | Fiber receiver | BF3RX | Korea Autonics |
Accessory List
NO. | NAME | SPECS | UNIT | NUMBER | REMARK |
1 | SPANNER | PIECE | 2 | TOOL | |
2 | MONKEY SPANNER | PIECE | 1 | TOOL | |
3 | HEXAGON RING SPANNER | SET | 1 | TOOL | |
4 | PHILIPS DRIVER | BUNDLE | 2 | TOOL | |
5 | SCREW DRIVER | BUNDLE | 2 | TOOL | |
6 | PEDAL SWITCH | PIC | 1 | ACCESSORY | |
7 | PLUG | PIC | 1 | ACCESSORY | |
8 | PRESSURIZING DISC | PIC | 1 | ACCESSORY | |
9 | POISE | 1000G | PIC | 1 | ACCESSORY |
10 | SCREW | SET | 1 | ACCESSORY | |
11 | ELECTRONIC SCALE | SET | 1 | ACCESSORY | |
12 | USAGE INSTRUCTION | COPY | 1 | FILE |
