GS-1E

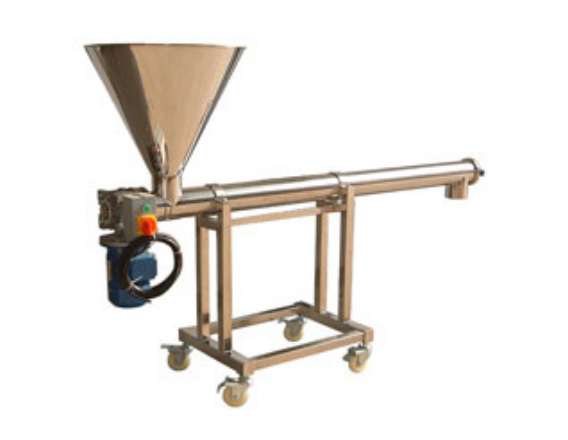

GS-1E series Cross screw feeder


Descriptions

The Machine can convey sorts of material. Combined with the package-machine of our company, it can do material situation tracing. It also can be used separately. Complete machine made in stainless steel, except for the electrical machine, gearing, and the framework.



Features

- Hopper is adjustable and vibration which make material to be flowing easily. It is good to material.
- Hopper is separate from twisting shaft. Structure is reasonable and easily loading and unloading.
- Characteristic dustproof, bearing won't be polluted by the dust and powder.
- To cleanup scrapped materials conveniently and design the machine to be: Discharging the material reversally, storing materials at the bottom of hopper pipe, and taking out the whole screw.



Technical Parameters

Model

GS-1E1

GS-1E3

GS-1E5

Charging Capacity

1 cbm/hr.

3 cbm/hr.

5 cbm/hr.

Pipe diameter

φ89

φ114

φ141

Total Power

550W

Total Power

3 phase 208-415V 50/60Hz

Total Weight

60kg

Remark

Different charging capacity could be designed and manufactured for special request.
