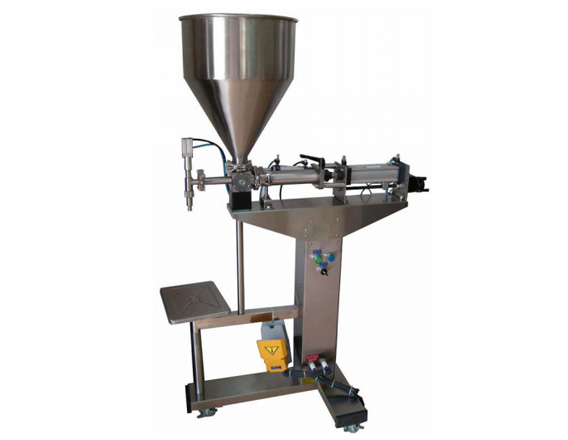

GZ series air drive ointment and liquid double-duty filling machine
Descriptions
It is a mini liquid filling machine. The machine is applied to quantitative filling ointment or liquid into various containers.
This machine is widely used in pharmacy, foodstuff, cosmetic and chemical etc industries.
Such as: tooth paste, ointment, syrup, jam, shoeshine, oil paint, printing ink, drink, paste, snowflake cream, magma, butter, lube, alcohol, pesticide, and so on.
Features
- 95% parts that contact with the materials are made of high quality stainless steel, no easy pollution, easy cleaning, meet the GMP standard.
- Its structure is reasonable, adopts pedal and automatic adjust filling volume, easily operation and maintenance.
- This machine is controlled by compressed air, so it is suitable in anti-explosion or moist environment.
- It is an economical and applied filling machine, It is applied to trial manufacturing or batch produce in small scale in factory, lab, hospital, science research department or in house use it.
- The machine adopts vacuum reclaim and split second stop flow device, no leakage, save materials and time, guarantee filling effect.
Many in last years, this machine won the large customer's good opinion by excellent quality and very low price.
There are some counterfeit products on market now, please keep away them.
Technical Parameters
Model | GZ-100 | GZ-250 | GZ-500 | GZ-1000 | GZ-2000 |
Filling volume | 10-100 ml | 30-250 ml | 100-500 ml | 200-1000 ml | 500-2000 ml |
Filling accuracy | < 1% | < 1% | < 1% | < 1% | < 1% |
Work type | Air drive Electric | Air drive Electric | Air drive Electric | Air drive Electric | Air drive Electric |
Air pressure | 0.4-0.6MPa | 0.4-0.6MPa | 0.4-0.6MPa | 0.4-0.6MPa | 0.4-0.6MPa |
Capacity | 20-25 times/min | 20-25 times/min | 12-18 times/min | 8-14 times/min | 6-10 times/min |
Power supply | AC,220V/50HZ Or customized | AC,220V/50HZ Or customized | AC,220V/50HZ Or customized | AC,220V/50HZ Or customized | AC,220V/50HZ Or customized |
Power | 20W | 20W | 20W | 20W | 20W |
Net weight | 35 kg | 35 kg | 45 kg | 45 kg | 75 kg |
overall size | 980x550x1450 mm | 1000x550x1550 mm | 1100x550x1600 mm | 1300x670x1650 mm | 1650x700x1700 mm |
