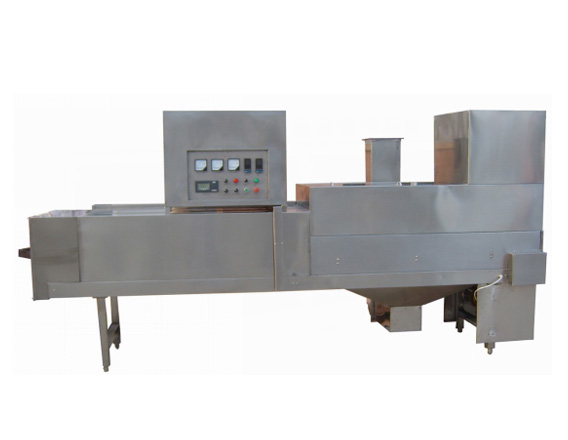

GMH series High-temperature sterilization tunnel oven
Descriptions
This machine is applied to dry, sterilize various glass bottles, such as oral liquor, clinical bottle and dropping bottle, and transfer by web sling (or chain). The speed of the web sling is adjustable.
Heat with far infrared quartz tube to raise the temperature quickly with high efficiency. The temperature is shown on the temperature controller and may be automatically set, controlled and recorded.
The cooling area is equipped with 100-level vertical layer cleaning apparatus which conforms to GMP specification.
Technical Parameters
GMH-350M
Production capacity | 100 - 120 bottles/min |
Applied bottle | 2 - 10 ml, clinical bottle |
Web sling width | 600 mm |
Calefaction mode | Far infrared quartz tube eradiate |
Temperature range | 50 degree Celsius - 350 degree Celsius |
Available sterilization time | More than 10 minutes in high temperature area |
Exhaust quantity | 7000 - 8000 m3/h |
Wind pressure | 180 - 320 Pa (blower purchase by the customer) |
Power | AC, 380V/50HZ 3 phase, <&= 35 KW |
Overall size | 4200x900x2100 mm |
GMH-500M
Production capacity | 200 - 240 bottles/min |
Applied bottle | 2 - 10 ml, clinical bottle |
Web sling width | 700 mm |
Calefaction mode | Far infrared quartz tube eradiate |
Temperature range | 50 degree Celsius - 350 degree Celsius |
Available sterilization time | More than 10 minutes in high temperature area |
Exhaust quantity | 9000 - 10000 m3/h |
Wind pressure | 180 - 320 Pa (blower purchase by the customer) |
Power | AC, 380V/50HZ 3 phase, <&= 45 KW |
Overall size | 5500x1100x2100 mm |
Main supplier of components:
Low noise blower | YDF-2.24A-4S HONGDA/ JIANGSU |
Temperature recorder | XQD.100Pt100(0 degree Celsius - 500 degree Celsius) SHANGHAI |
Stainless steel chain | 1Cr18NiiTi WUXI |
Hundred level high efficiency filter | 1350x750x140 mm JIANGSU |
High temperature inner wall | 2 mm ovenproof and acidproof stainless steel |
Box shell | 1.2 mm SUS304 stainless steel |
Over packing board | 1.2 mm SUS304 stainless steel |
Electric control | Frequency conversion adjust speed, PLC and oven Combine control, guarantee the two unit effect Main unit by DELTA TAIWAN |
