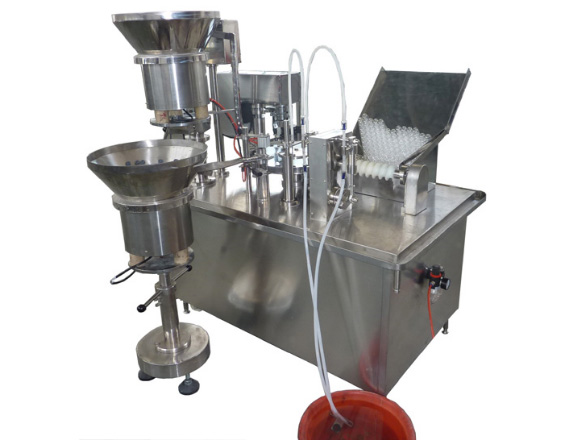

KGF-40 Liquid filling & sealing machine
Descriptions
This machine is the filling apparatus in the oral liquor assembly line, which is mainly applied in filling, lidding, screw sealing of 2 - 30 ml bottles. The operation of filling and sealing is combined in this machine with its advanced design and compact structure.
There are two filling nozzles on this machine, guarantee the filling is smooth.
This machine can customized according to customers' specific request.
Technical Parameters
Applied bottles | 5 -30 ml glass bottle and plastic bottle |
Production capacity | 40 bottles/min |
Accuracy | 0 - 2% |
Sealing rate | ≥ 99% |
Power | 1.3 KW |
Power supply | AC, 380V/50HZ 3 phase or 220V/50HZ 1 phase |
Net weight | 650 kg |
Overall size | 1380x 960x 1480 mm |
