piston filling machine

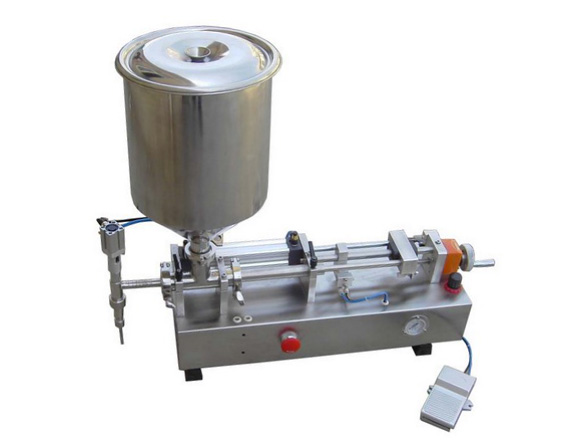

HSFA series Liquid and ointment double-duty piston filling machine (Pure pneumatic)






Descriptions

This piston filling machines HSFA series are applied to fill liquid and semiliquid (viscouse Liquid, ointment) products into various containers.
This pure pneumatic machine is especially suitable for the explosion-resistant and humid Production environment.
This machine is widely used in pharmacy, foodstuff, chemical, cosmetic industries and other special industries.



Features
- All the components that come in contact with product are made of 316L stainless steel Which is sourced from Sweden and processed by CNC machines to ensure a surface
Roughness lower than 0.8,no pollution, easy cleaning, meet the GMP standard.
- This machine is controlled by compressed air, so it is suitable for using at explosion-Resistant and humid environment.
- Because of the pneumatic controls and mechanical positioning, this machine has high filling accuracy which is within 0.5%.
- Two filling modes for you to choose- "Manual" and "Auto".
- The filling volume and speed are adjusted using screws and the counter, which provides ease of adjustment and allows the operator to read the real-time filling volume on the counter.
- The filling nozzle adopts anti-leakage, no pollution, save time and materials.
- The piston and throttle valves units are connected by hook-and-loop fasteners, it takes only 1 minute to assemble and disassemble the unit without any tool, and cleaning is very easy.
- When you need to stop the machine in an emergency, press the URGENT button. The piston will go back to its initial location and the filling will be stopped immediately.
- We've developed two series of HSFA machine.TOP series(T series) and POP series (P series) to meet the demand of different customers.
T series: The pneumatic components are from FESTO,Germany.
P series: The pneumatic components are from Taiwan or Korea.
- This machine can be appended other special device according to customers request. Such as: acicular filling Nozzles, feed hopper, ball valve system, lifting device etc.
- The proportion of equipment malfunction is extremely small.easy to clean,tool free.



Technical Parameters

Filling speed

800-1200 bottle/min

Filling accuracy

Within 0.5%

Air pressure

8 kg/cm2



Model

Filling range

air consumption

Weight

Overall size

HSFA-60

5-60 ml

23 L/min

11 kg

92X28X40 cm

HSFA-120

10-120 ml

30 L/min

22 kg

92X28X40 cm

HSFA-250

25-250 ml

44 L/min

25 kg

102X30X40 cm

HSFA-500

50-500 ml

87 L/min

28 kg

108X32X41 cm

HSFA-1000

100-1000 ml

160 L/min

36 kg

128X36X41 cm

HSFA-2500

250-2500 ml

300 L/min

60 kg

130X60X51 cm

HSFA-5000

500-5000 ml

450 L/min

75 kg

130X60X51 cm

Note: the air consumption are based on the filling speed of 10 pc/min. Multiply two, when The speed is doubled, and so on.
