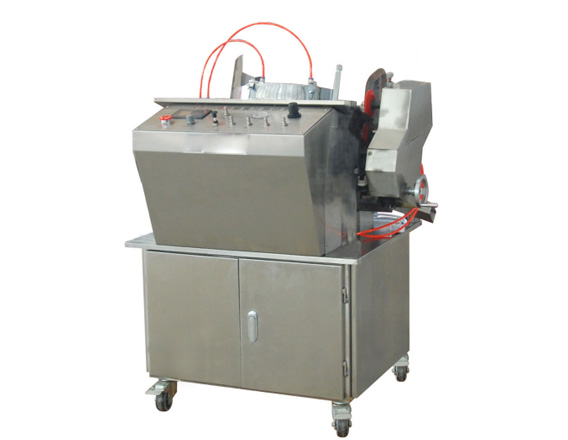

YSZ-A Automatic capsule & tablet printer
Use & Features
The machine can print letter on empty hard capsule, filled capsule, soft capsule and tablets of various shapes and specs.
The structure is compact, the machine can be operated by touch screen, so the operation is very simple and reliable.
The machine has the function of print letter with double color and double-sided.
Technical Parameters
Production capacity | Empty capsule: 40000 capsules/hour |
Filled capsule: 40000 capsules/hour | |
soft capsule: 33000 - 35000 capsules/hour | |
Tablet: 3 mm ≥ 120000 tablets/hour 6 mm ≥80000 tablets/hour 12 mm ≥60000 tablets/hour | |
Motor power | 0.25 KW |
Power supply | AC, 220V/50HZ 1 phase or customized |
Air compressor | 40 Pa |
Noise | ≤ 50 dB |
Weight | 150 kg |
Overall size | 1000(L) x 760(W) x 1100(H) mm |
YSZ-B Automatic capsule & tablet printer
Production capacity | Empty capsule: 40000 capsules/hour |
Filled capsule: 40000 capsules/hour | |
Soft capsule: 33000 - 35000 capsules/hour | |
Tablet: 5 mm ≥ 70000 tablets/hour 9 mm ≥ 55000 tablets/hour 12 mm ≥ 45000 tablets/hour | |
Motor power | 0.25 KW |
Power supply | AC, 220V/50HZ 1 phase or customized |
Air compressor | 40 Pa |
Noise | ≤ 50 dB |
Weight | 196 kg |
Overall size | 1000(L) x 760(W) x 1800(H) mm |
