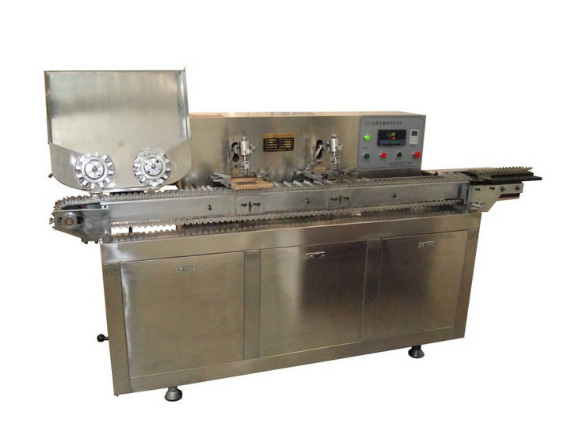

YZG-II High-speed ampoule silk-screen glaze printer
Descriptions
The machine combines advantages of printing lines both from home and abroad. It is especially fit for glaze-printing of 1 ml, 2ml, 5ml, 10ml, 20ml and non-standard ampoules in horizontal or vertical ampoule production.
Clear characters, brilliant glaze, firm firing and bright color satisfy the requirements for Ampoule printing.
Features
- Automatic bottle setting and printing
- Automatic raising knife in empty bottle positions and firing glaze
Technical Parameters
Model | YZG-I | YZG-II |
Specification | 1-20 ml | |
Maximum capacity | 3600 bottles/hour | 7500 bottles/hour |
Baking oven power | 18 KW or gas 1.2 kg/hour | 20 KW or gas 1.5 kg/hour |
Motor power | 0.55 KW | 0.75 KW |
Weight | 2200 kg | 2500 kg |
Overall size | 6000 x 600 x 1250 mm | 7000 x 600 x 1250 mm |
