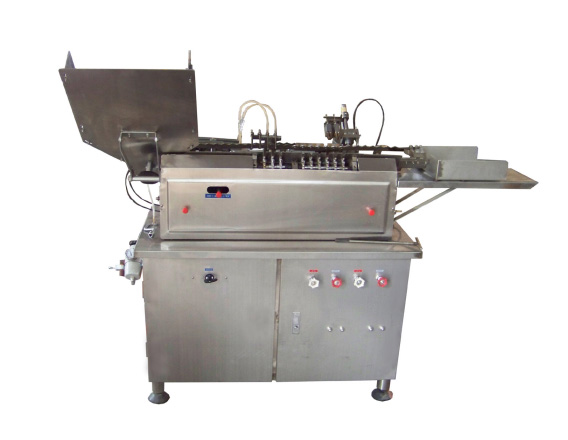

LSAG series Ampoule drawing filling & sealing machine
Descriptions
The machine is a new generation of the ampoule drawing, filling and sealing combined equipment for injections. It adopts the rectangular feeding instead of the traditional ampoule feeding methods. In such case, the feeding is steady with no easy broken ampoule. A modern clutch is mouthed under the ampoule feed hopper.Therefore,the ampoule feeding can be stopped at any time while the machines is still running.So the ampoule lost can be reduced.In the part of stopping filling where changes electromagnetic switch into mechanical switch.It is reliable and durable.Bottle reverse and bottle arranging structure are used in the device of bottle outlet.It reduces the broken rate of the finished products of ampoules tremendously.
Technical Parameters
Model | LSAG-1/2 | LSAG-5/10/20(Two needles) |
Specification | 1-2 ml | 5,10,20 ml |
Capacity | 1800-4200 pcs/h | 3600-4200 pcs/h |
Motor power | 0.37 KW | 0.37 KW |
Power supply | 380V/50HZ or customization | 380V/50HZ or customization |
Fuel consumption | 2-2.5 m3/h(gas) 0.08-0.1 MPa(LPG) | 2-2.5 m3/h(gas) 0.08-0.1 MPa(LPG) |
Oxygen consumption | 0.7 m3/h,0.1 MPa | 0.7 m3/h,0.1 MPa |
Weight | 100 kg | 150 kg |
Overall size | 1300x700x1300 mm | 1500x700x1400 mm |
