DCF-500 Back-sealing powder automatic packing machine
Descriptions
This machine is applied to pack powdery materials with bag, such as foodstuff, Medicine and chemical etc.
Features
- Bag-making, measuring, filling, sealing, cutting, date printing and counting are all finished automatically, high effective and sanitary.
- Either under set length control or photoelectric color tracing, bag length is set and cut In one step. Time and film saving.
- The temperature is under independent PID control, more suitable for different packing Materials, the tolerance is ±1%.
- Equipped Weinview touch screen, MITSUBISHI PLC and Panasonic servo motor and so on.
- The driving system is simple and reliable, and maintenance is easy.
- Main parts are made of stainless steel, meet the GMP standard.
- Automatic self support lubricating system, the machine can continuous more than 24 Hours.
- Applicable material should be composite film like: PET/PE, Paper/PE, PET/AL (PET-AL), PE, OPP/PE etc.
Technical Parameters
Model | DCF-500 |
Sealing type | Back-sealing |
Film width | ≤ 500 mm |
Method of measurement | Auger screw and bag forming device |
Range of measurement | 50-1500 g |
Packing speed | 20 - 40 bag/min |
Bag size | W/80-240 mm, L/100-300 mm |
Power | Main machine, 3 KW Charging machine, 1.8 KW Filling machine, 1.8 KW Conveyor belt of finished product, 0.09 KW |
Power supply | customization |
Air consumption | 0.36 m3/min, 6 to 8 kg |
Net weight | Main machine, 550 kg Charging machine, 180 kg Filling machine, 160 kg Conveyor belt of finished product, 30 kg |
Overall size | Main machine, 1550x1160x1480 mm Charging machine, 3420x900x2800 mm Filling machine, 1200x750x1100 mm Conveyor belt of finished product, 1400x430x880 mm |
Main configuration list:
Name | Manufacturer |
Touch screen | Weinview touch screen |
PLC | MITSUBISHI |
Servo motor | Panasonic, Ashton |
Mixing motor | Shengbang precision |
Color standard sensor | SICK Germany |
Other device | Made in China and imported electrical meter |

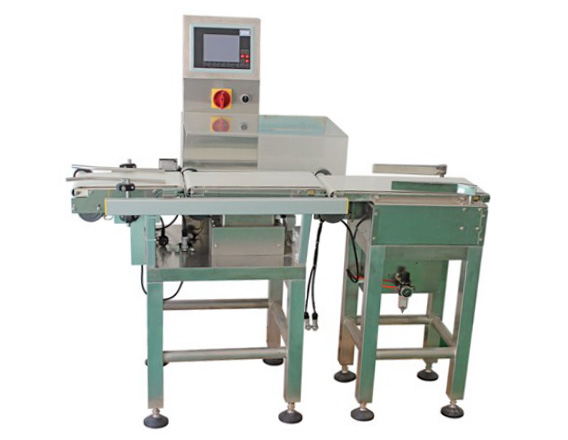

ZH-XBC series weight inspection machine
Descriptions
This machine is suitable for dynamic detection of weighing for passing finished product on production line, and automatic sorting and counting.
Technical Parameters
Model | ZH-XBC-1 | ZH-XBC-2 |
Weighing range | 1 - 99 g | 100 - 1000 g |
Speed | 65 bags/min | 50 bags/min |
Precision | 0.5 g | 1 g |
Preset product | 10 pcs | |
Sorting unit | Push lever | |
