HTB-400

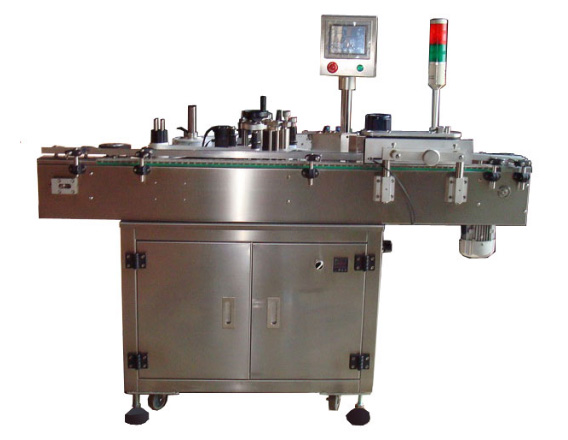

HTB-400 High-speed labeling machine



Descriptions

HTB-400 is economical, self contained, easy to operate, equipped with auto teach programming touch screen.
The machine adopts high speed labeling device and speed up to 350 bottles/min. Built in microchip storing different job setting makes fast and easy changeover.
This automatic labeling system is ideal for all sorts of cylindrical container. (Bottle size could be customized)



Features

- Labeling speed up to 350 bottles/min.
- Touch screen control system ( MITSUBISHI ) with job memory
- Simple straight forward operator controls
- Full-set protecting device keep operation steady and reliable
- On-screen Trouble Shooting & Help Menu
- Stainless steel frame
- Open frame design, easy to adjust and change the label
- Variable speed with servo motor( MITSUBISHI )
- Label count down (for precise run of set number of labels) to auto shut off
- Stamping coding device attached



Technical Parameters

Labeling speed

100-350 bottles/min (according to the specification, shape of bottle and length of label)

Bottles size

Can be customized based on customers' requirements

Label size

Length: 10 mm-180 mm       Width : 10 mm-80 mm

Power

1 KW

Power supply

AC,220V/50HZ 1 phase or customized

Working direction

Left → Right (or Right → Left)

Net weight

500 kg

Overall size

1500 x 950 x 1400 mm  (length x width x Height)
