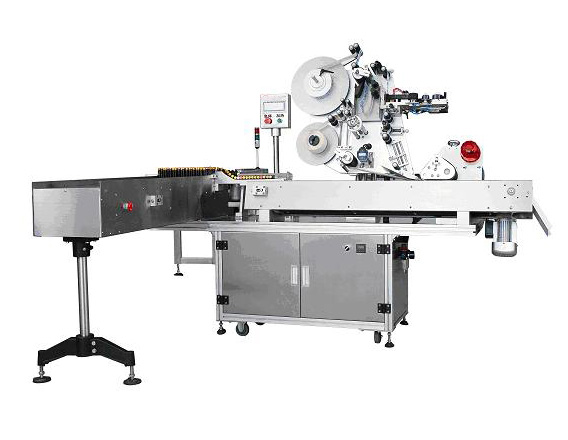

HWTB-400 High-speed labeling machine
Descriptions
HWTB-400 is economical, self contained, easy to operate, equipped with auto teach programming touch screen.
The machine adopts high speed labeling device and speed up to 400 bottles/min. Built in microchip storing different job setting makes fast and easy changeover.
This automatic labeling system is ideal for slim cylindrical container such as ampoule.
Features
- Labeling speed up to 400 bottles/min
- Touch screen control system ( MITSUBISHI ) with job memory
- Simple straight forward operator controls
- Full-set protecting device keep operation steady and reliable
- On-screen Trouble Shooting & Help Menu
- Stainless steel frame
- Open frame design, easy to adjust and change the label
- Variable speed with servo motor( MITSUBISHI )
- Label count down (for precise run of set number of labels) to auto shut off
- Stamping coding device attached
Technical Parameters
Labeling speed | 100-400 bottles/min (according to the specification, shape of bottle and length of label) |
Bottles size | Can be customized based on the requirements |
Label size | Length: 20mm - 90 mm Width: 15mm - 80 mm |
Power | 1.5 KW |
Power | AC, 220 V/50 HZ 1 phase or customized |
Working direction | Left → Right (or Right → Left) |
Net weight | 600 kg |
Overall size | 1800x1500x1700 mm ( Length x Width x Height ) |
