Top labeling machine

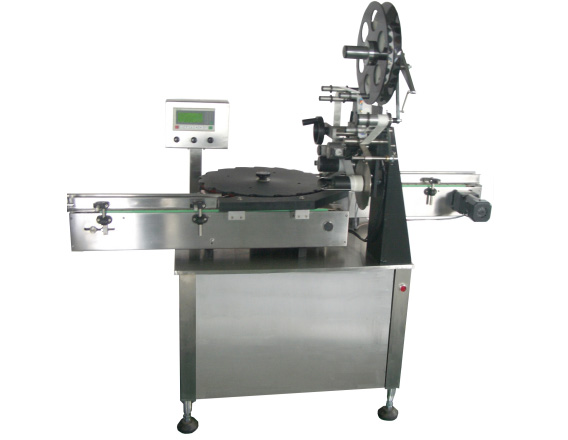

TTL-250 Top labeling machine for cap



Descriptions

TTL-250 is suitable for labeling label on the caps of cylinder bottle.
The machine is economical and easy to operate, equipped with friendly LCD and PLC control system. The performance is stable with a level off especially at the top of cap. The system easy changeover based the requirement.



Features

- Labeling speed up to 150 BPM ( according to the length of label )
- LCD & PLC control system which is easy to control
- Simple straight forward operator controls
- On-screen trouble description which is easy to solve
- Stainless frame
- Open frame design, easy to adjust and change the label
- Variable speed with step motor
- Label count down (for precise run of set number of labels) to auto shut off
- Stamping coding device optional



Technical Parameters

Labeling speed

80-150 bottles/min (according to the specification, shape            of bottle and length of label)

Bottles size

customized based on the requirements

Label size

customized based on the requirements

Power

300 W

Power supply

AC,220V/50HZ 1 phase or customized

Working direction

Left → Right (or Right → Left)

Weight

280kg

Overall size

1600mmx600mmx1250 mm ( Length x Width x Height )
