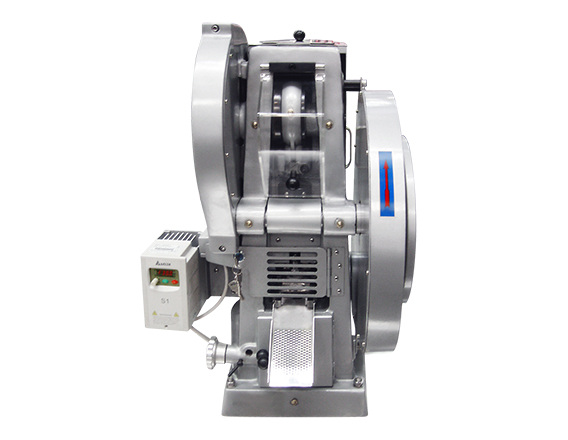

DP30A, DP40A Single punch tablet press
Descriptions
Developed through the absorption of the international advanced technologies, equipped a transducer, so the output can be adjusted, and operator can install one die, two dies or three dies on the lower punch, the maximum capacity is 10800 tablets per hour.
This machine can press round or irregular tablets from various granular materials. It is applicable to trial manufacture or small scale production in lab, hospital and science research institutes etc.
Features
- Glossy finished stainless steel belt cover, as clean as a whistle, no pollution, meets the GMP standard.
- Equipped a transducer, so the output can be adjusted, and the maximum capacity is 10800 tablets per hour.
- Operator can install one die, two dies or three dies on the lower punch, and both filling depth Of materials and thickness of tablet are adjustable.
- Press both round and irregular tablets.
- Power supply: AC, 220V/50HZ or 110V/60HZ 1 phase or customization.
- Free with a pair of punch and die.
- High precision of filling, lower consumption of materials, the minimum consumption of lab materials is just 200 g.
- Small volume, light weight, works smoothly and low noise.
Technical Parameters
Model | DP30A | DP40A |
Punch quantity | 1 | |
Die quantity | 1, 2,3 | |
Max. pressure | 30 KN | 40 KN |
Max. diameter of tablet | 20 mm | 30 mm |
Max. depth of fill | 20 mm | 22 mm |
Max. thickness of tablet | 8 mm | |
Production capacity | One die: 3600 tablets/hour Two dies: 7200 tablets/hour Three dies: 10800 tablets/hour | |
Power | 0.55 KW | 0.75 KW |
Power supply | AC, 220V/50HZ or 110V/60HZ 1 phase | |
Net weight | 150 kg | 200 kg |
Overall size | 720x470x745 mm | 850x550x890 mm |
1. Main supplier of components:
The motor is WEITELI China
The stainless steel is SUS 304 from BAOSREEL Shanghai, China.
The others are carbon steel.
2. Delivery time:
Round dies ------ 7 days after receiving the payment.
Irregular dies ----- 10 days after receiving the payment.
3. Payment methods:
T/T or Western Union payment, and full payment before shipping.
4. Guarantee:
One year quality guarantees and free with spare parts for one year.
5. After sales service:
The English user manual
Circuit diagram
