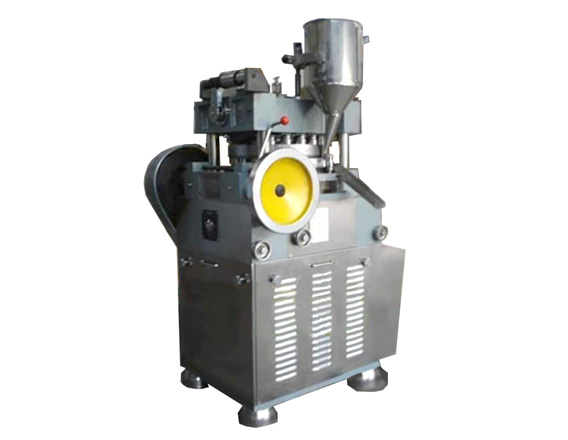

ZPW19B Rotary tablet press



This machine is used to press the granular raw material into the round tablets or various geometric shaped tablets, it is especially caters for small-batch production. This machine is mainly used in pharmaceutical, chemical, food, electronic industry and so on.


Scope of application

- Pharmaceutical: Chinese tablets, Western medicine, plain films, chewable tablet, calcium tablet, buccal tablet, propolis tablet (bee propolis tablet), spiraling tablet, effervescent tablet pioneer, camphor ball etc.
- Foodstuff: candy pieces, flake coffee, chicken essence chunk, seasoning chunk, glucose tablet, milk powder candy etc,.
- Agriculture: wafer feed, fertilizer chunk, animal food etc.
- Chemical: bleaching powder, ceramic powder, powder metallurgy, magnetic materials, antiseptic, powdered carbon£¬molecular sieve etc.
- Electronic: carbon brush, button cell, electronic component etc.


Technical Parameters

Die no.

19 sets

Max. pressure of tablet

80-100 KN

Max. dia. of tablet

40 mm

Max. depth of filling

28 mm

Max. throughput

22800 pc/h


  3 KW 380/50v/Hz

Outline dim.(L x W x H)

1100 x 1200 x 1700mm

Net Weight

1280 kg
