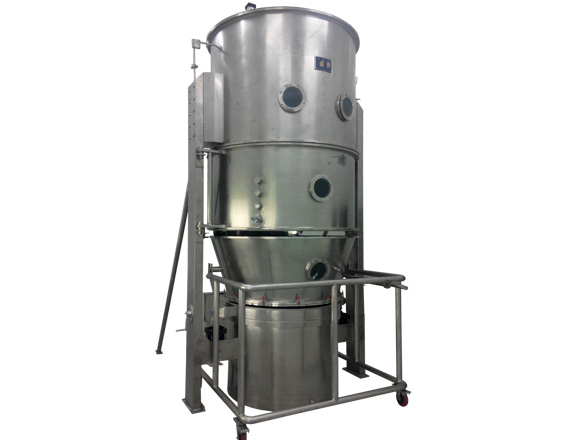

FL-120 boiling granulating drier

Use & Features

The method of boiling and granulating is a comprehensive fruit of spraying and fluidizing technology. It makes traditional mixing ,granulating and drying processes finish in the same closed container. So it is called as "one step granulator".
This machine has simple structure and is easy to clean and maintain .Not only it can make granule but also dry quickly. The process of mixing ,granulating ,drying will be finished in the same closed container at the same time. So it can prevent from pollution caused by contacting with environment and guarantee that the quality of medical granule is conformity with the requirement of "GMP".
The parts contacted with raw material are made of 316L stainless steel. The heating of machine can be divided into electricity or steam and the control part can be divided into ordinary form or computer form .Customer can choose it freely.

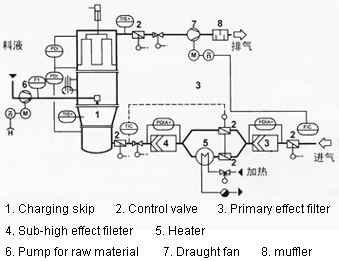

Schmatic of installation

Features

- Improve its fluidity and reduce powder dust to fly through powder granulating.
- Improve its solving property through powder granulating
- Mixing, granulating and drying can be finished in the same machine, i.e .one step to granulate.
- Being adapted anti-static electricity filtering cloth, the operation of equipment is safe.
- Being set discharge hole of pressure, if explosion were taken place, the equipment and personal can not be damaged.
- Automatic operation, or hand operation.
- There is a bleed hole, once explosion, this machine can't be damaged.
- Guard against electrostatic generation, adopt the cloth bag without electrostatic.
- The equipment has no dead corner. The loading and unloading is quick and convenient. It can be washed Clean. It is in conformity with the normal of GMP.

Scope of application

- Medicine granulating Granulating ; granulator of tablet, quick solved drink, granule used for capsule.
- Foodstuff granulating and coating: Sugar, coffee ,cocoa ,powder, cream ,powder syrup, amino acid, favoring, puffed food.
- Granulating for pesiticide ,pigment , dyertuff.
- Drying for powder ,granule, block raw materials.
- Coating: granulate, pill protection layer ,formulated color ,slow release ,film ,coating for intesting solving.

Technical Parameters

- Main machine is made of 316L stainless steel, 3 mm in thickness, inside surface adopts mirror polish, no dead corner, cleaning is very easy; outside surface adopts matte finishing.
- Hopper capacity: 420 liters
  A charging wagons is equipped, material: SUS 304
- Production capacity for main machine: 80 - 120 kg/batch ; 320 - 480 kg/8 hours
- Granulating time: 60 - 90 minutes/batch, 4 batchs/8 hours
- Working temperature: 50 - 150º Celsius
- Heating type :  steam heating, steam magnetic valve control, SUS304 stainless steel tube with 18 x 2 stainless steel fin
- Air consumption :  0.9 m3/min
- Centrifugal fan with Explosion-Proof Motor :  18.5 KW, 1 unit
  Noise snubber is equipped in the centrifugal fan.
- Frequency converter :  18.5 KW, 1unit
- Bag filter, 2 sets ; vibrating cylinder, 2 sets ; valve for air adjusting, 2 sets.
- Peristaltic pump, 1 unit, YT600-1J
- Temperature meter :  3 units
- Spray gun, 1 pc ;  base of spray gun, 3 pcs ;  3 fluid type, the height of spray gun can be adjusted.
- Ventilating system adopts primary effect, middle effect and sub-high effect filters, ensure hundreds of clean air.
  Air filter box, 1 unit, with primary effect, middle effect and sub-high effect filters.
- Air drive fast valve at the air inlet, avoid the heat loss.
- Control cabinet, Material :  304# stainless steel, key-press operation.
- Overall size: 3800 mm x 1700 x 3400 mm
  Packing size: 4000 mm x 2200 x 2200 mm
  Net weight: 2500 kg, Gross weight: 2850 kg

Equipped Electrical Apparatus Components List

Remark: The final components are subject to the function and requirement of your needed machine.
