CS-1 Tablet Friability Tester
Descriptions
CS series of instruments are used for detecting friability/abrasion of tablet.
Applicable standards:
National Standard (Chinese codex)/2005/
Corporate standard (Tablet Friability tester) Q/12XQ0189-2004
Technical Parameters
Cylinder number | 2 |
Cylinder radius | Ø286mm |
Cylinder depth | 39 mm |
Tablet fall height | 156 mm |
Rotation count | 10-900 r |
Rotation count accuracy | +/-1 r |
Rotation speed | 20-90 r/min |
Rotation speed accuracy | +/-1 r/min |
Power | 60 W |
Power supply | AC, 220V/50HZ or 110V/60HZ 1 phase |
Overall size | 370x300x340 mm |
Weight | 14 kg |

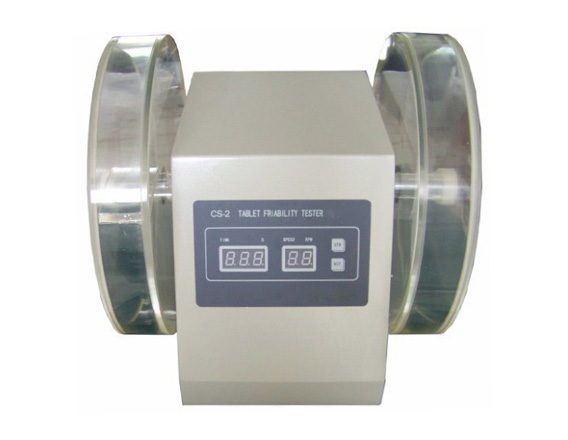

CS-2 Tablet Friability Tester
Descriptions
CS series of instruments are used for detecting friability/abrasion of tablet.
Applicable standards:
National Standard (Chinese codex)/2005/
Corporate standard (Tablet Friability tester) Q/12XQ0189-2004
Features
- Two drums run synchronously. Auto stop at timing point.
- The drum is made of high quality hyaline acryl.
- The speed and revolution of the drum can be preset at any time. Either preset or real data is displayed on the LED.
- A MPU is used to control all operations; high accuracy is achieved in testing rotary speed and circle number.
- Automation: auto-test, auto-diagnose, auto-alarm.
Technical Parameters
Cylinder number | 2 |
Cylinder radius | Ø286 |
Cylinder depth | 39 mm |
Tablet fall height | 156 mm |
Rotation count | 100 r |
Rotation count accuracy | +/-1 r |
Rotation speed | 25 r/min |
Rotation speed accuracy | +/-1 r/min |
Power | 40W |
Power supply | AC, 220V/50HZ or 110V/50HZ 1 phase |
Overall size | 360x300x340 mm |
Weight | 11 kg |
CS-3 Tablet Friability Tester
Descriptions
CS series of instruments are used for detecting friability/abrasion of tablet.
Applicable standards:
National Standard (Chinese codex)/2005/
Corporate standard (Tablet Friability tester) Q/12XQ0189-2004
Features
- Two drums run synchronously. Auto stop at timing point.
- The drum is made of high quality hyaline acryl.
- The speed and revolution of the drum can be preset at any time. Either preset or real data is displayed on the LED.
- A MPU is used to control all operations; high accuracy is achieved in testing rotary speed and circle number.
- Automation: auto-test, auto-diagnose, auto-alarm.
Technical Parameters
Cylinder number | 2 |
Cylinder radius | Ø286 mm |
Cylinder depth | 39 mm |
Tablet fall height | 156 mm |
Rotation count | 10-900 r |
Rotation count accuracy | +/-1 r |
Rotation speed | 25 r/min |
Rotation speed accuracy | +/-1 r/min |
Power | 40 W |
Power supply | AC, 220V/50HZ or 110V/60HZ 1 phase |
Overall size | 360x300x340 mm |
Weight | 10 kg |

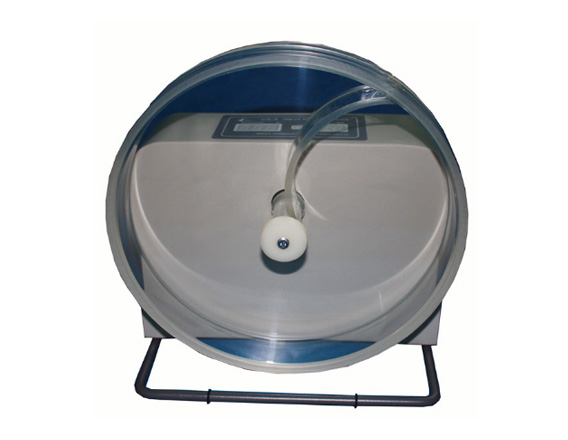

CS-4 Tablet Friability Tester
Descriptions
CS series of instruments are used for detecting friability/abrasion of tablet.
Applicable standards:
National Standard (Chinese codex)/2005/
Corporate standard (Tablet Friability tester) Q/12XQ0189-2004
Features
- Single drum runs. Auto stop at timing point.
- The drum is made of high quality hyaline acryl.
- The speed and revolution of the drum is constant. Either preset or real data is displayed on the LED.
- A MPU is used to control all operations; high accuracy is achieved in testing rotary speed and circle number.
- Automation: auto-test, auto-diagnose, auto-alarm.
Technical Parameters
Cylinder number | 1 |
Cylinder radius | Ø286 mm |
Cylinder depth | 39 mm |
Tablet fall height | 156 mm |
Rotation count | 100 r |
Rotation count accuracy | +/-1 r |
Rotation speed | 25 r/min |
Rotation speed accuracy | +/-1 r/min |
Power | 20 W |
Power supply | AC, 220V/50HZ or 110V/60HZ 1 phase |
Overall size | 300x200x330 mm |
Weight | 6 kg |
