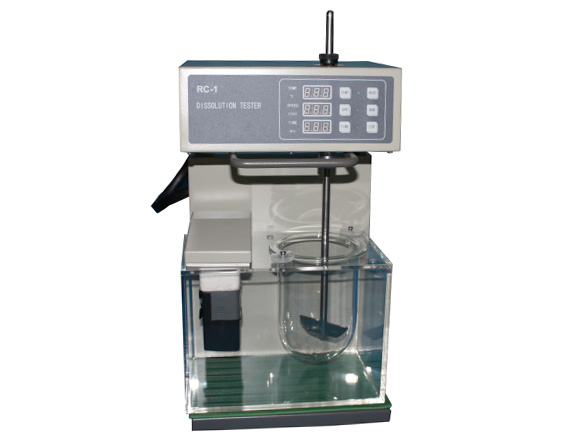

RC-1 Dissolution tester
Descriptions
RC series of instruments are used for detecting velocity and extent of pharmic dissolution from tablet, capsule etc in prescriptive menstruum.
Applicable standards:
National standard (Chinese codex)/2005/
Corporate standard (Dissolution tester) Q/12XQ0187-2004
Features
- It has one vessel and one pole arranged on one line.
- The head part of the instrument can be artificially turned over smoothly and flexibly.
- The basket unit and paddle unit are made of imported stainless steel (SUS 316L).
- The magnetism-pumped circular water current can heat the system evenly, and the bath liquid can achieve an equal temperature.
- A MPU is used in dissolution tester to automatically control the temperature, rotational speed and time, and the parameters can be preset at anytime.
- It can be operated conveniently by keystroke, the measurement result is displayed on LED, The preset and real data can be displayed alternately in time.
- Automation: Auto-test, auto-diagnose, auto-alarm.
Technical Parameters
Speed range | 20-200 r/min |
Speed accuracy | +/-2r/min |
Temperature range | Room temperature to 45º Celsius |
Temperature accuracy | +/-0.3º Celsius |
Preset timing | 5-900 minutes |
Time accuracy | +/-0.5minute |
Paddle radial run-out | +/-0.5mm |
Basket radial run-out | +/-1mm |
Power | 600W |
Power supply | AC,220V/50HZ or 110V/60HZ |
Weight | 15 kg |
Overall size | 260x300x480 mm |

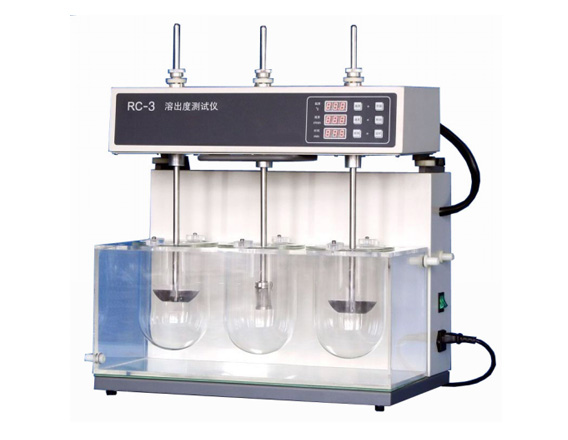

RC-3 Dissolution tester
Descriptions
RC series of instruments are used for detecting velocity and extent of pharmic dissolution from tablet, capsule etc in prescriptive menstruum.
Applicable standards:
National standard (Chinese codex)/2005/
Corporate standard (Dissolution tester) Q/12XQ0187-2004
Features
- It has three vessels and three poles arranged on one line.
- The head part of the instrument can be artificially turned over smoothly and flexibly.
- The basket unit s and paddle units are made of imported stainless steel (SUS 316L).
- The magnetism-pumped circular water current can heat the system evenly, and the bath liquid can achieve an equal temperature.
- A MPU is used in dissolution tester to automatically control the temperature, rotational speed and time, and the parameters can be preset at anytime.
- It can be operated conveniently by keystroke, the measurement result is displayed on LED, The preset and real data can be displayed alternately in time.
- Automation: Auto-test, auto-diagnose, auto-alarm.
Technical Parameters
Speed range | 20-200 r/min |
Speed accuracy | +/-2r/min |
Temperature range | Room temperature to 45º Celsius |
Temperature accuracy | +/-0.3º Celsius |
Preset timing | 5-900 minutes |
Time accuracy | +/-0.5minute |
Paddle radial run-out | +/-0.5mm |
Paddle radial run-out | +/-1mm |
Power | 600W |
Power supply | AC,220V/50HZ or 110V/60HZ |
Weight | 35kg |
Overall size | 460x300x480mm |

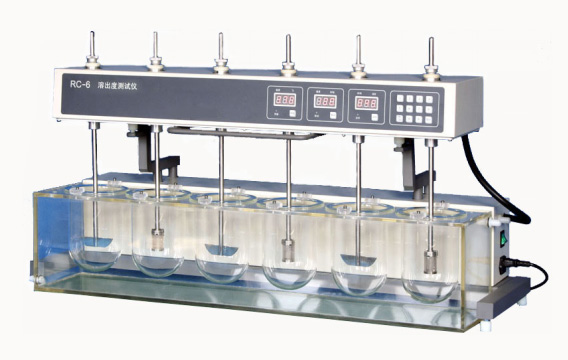

RC-6 Dissolution tester
Descriptions
RC series of instruments are used for detecting velocity and extent of pharmic dissolution from tablet, capsule etc in prescriptive menstruum.
Applicable standards:
National standard (Chinese codex)/2005/
Corporate standard (Dissolution tester) Q/12XQ0187-2004
Features
- It has six vessels and six poles arranged on one line.
- The head part of the instrument can be artificially turned over smoothly and flexibly.
- The basket units and paddle units are made of imported stainless steel (SUS 316L)
- The magnetism-pumped circular water current can heat the system evenly, and the bath liquid can achieve an equal temperature.
- A MPU is used in dissolution tester to automatically control the temperature, rotational speed and time, and the parameters can be preset at anytime.
- It can be operated conveniently by keystroke, the measurement result is displayed on LED, The preset and real data can be displayed alternately in time.
- Automation: Auto-test, auto-diagnose, auto-alarm.
- It can test by itself and alarm automatically. The dissolution parameters of "Chinese codex 2005" are stored in and can be taken out at anytime.
- Time can be preset at many points, the beeper sounds automatically to any point, and then the tester automatically runs to the next one.
Technical Parameters
Speed range | 20-200 r/min |
Speed accuracy | +/-2 r/min |
Temperature range | Room temperature to 45º Celsius |
Temperature accuracy | +/-0.3º Celsius |
Preset timing | 1-999 minutes (nine points) |
Time accuracy | +/-0.5minute |
Paddle radial run-out | +/-0.5mm |
Basket radial run-out | +/-1mm |
Power | 1200W |
Power supply | AC,220V/50HZ or 110V/60HZ |
Weight | 45 kg |
Overall size | 960x320x480mm |

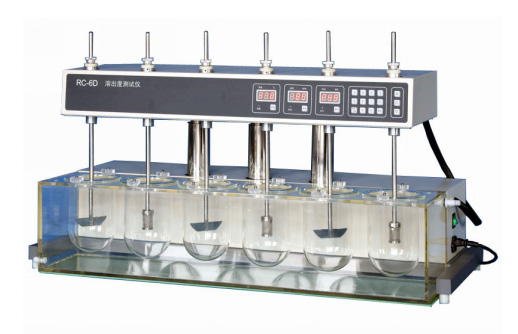

RC-6D Dissolution tester
Descriptions
RC series of instruments are used for detecting velocity and extent of pharmic dissolution from tablet, capsule etc in prescriptive menstruum.
Applicable standards:
National standard (Chinese codex) /2005/
Corporate standard (Dissolution tester) Q/12XQ0187-2004
Features
- It has six vessels and six poles arranged on one line;
- The head part moves up/down automatically.
- The basket units and paddle units are made of imported stainless steel (SUS 316L)
- The magnetism-pumped circular water current can heat the system evenly, and the bath liquid can achieve an equal temperature.
- A MPU is used in dissolution tester to automatically control the temperature, rotational speed and time, and the parameters can be preset at anytime.
- It can be operated conveniently by keystroke, the measurement result is displayed on LED, the preset and real data can be displayed alternately in time.
- Automation: Auto-test, auto-diagnose, auto-alarm.
- It can test by itself and alarm automatically. The dissolution parameters of "Chinese codex 2005" are stored in and can be taken out at anytime.
- Time can be preset at many points, the beeper sounds automatically to any point, and then the tester automatically runs to the next one.
Technical Parameters
Speed range | 20-200 r/min |
Speed accuracy | +/-2 r/min |
Temperature range | Room temperature to 45º Celsius |
Temperature accuracy | +/-0.3º Celsius |
Preset timing | 1-999 minutes(nine points) |
Time accuracy | +/-0.5minute |
Paddle radial run-out | +/-0.5mm |
Basket radial run-out | +/-1mm |
Power | 1200W |
Power supply | AC,220V/50HZ or 110V/60HZ |
Weight | 56 kg |
Overall size | 960x400x480 mm |

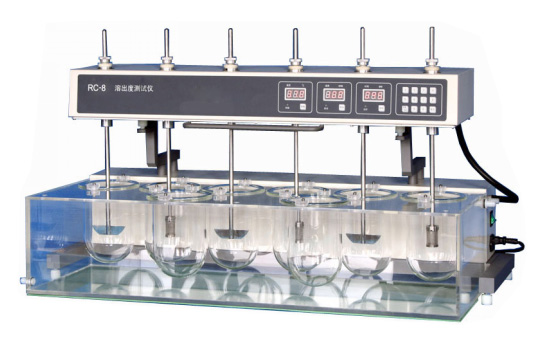

RC-8 Dissolution tester
Descriptions
RC Series of instruments are used for detecting velocity and extent of pharmic dissolution from tablet, capsule etc in prescriptive menstruum.
Applicable standards:
National standard (Chinese codex) /2005/
Corporate standard (Dissolution tester) Q/12XQ0187-2004
Features
- It has eight vessels and six poles, with six vessels and six poles at back, and other two vessels in front.
- The head part of the instrument can be artificially turned over smoothly and flexibly.
- The basket units and paddle units are made of imported stainless steel (SUS 316L)
- The magnetism-pumped circular water current can heat the system evenly, and the bath liquid can achieve an equal temperature.
- A MPU is used in dissolution tester to automatically control the temperature, rotational speed and time, and the parameters can be preset at any time.
- It can be operated conveniently by keystroke, the measurement result is displayed on LED, the preset and real data can be displayed alternately in time.
- Automation: Auto-set, auto-diagnose, auto-alarm.
- It can test by itself and alarm automatically. The dissolution parameters of "Chinese codex 2000" are stored in and can be taken out at anytime.
- Time can be preset at many points, the beeper sounds automatically to any point, and then the tester automatically runs to the next one.
Technical Parameters
Speed range | 20-200 r/min |
Speed accuracy | +/-2 r/min |
Temperature range | Room temperature to 45º Celsius |
Temperature accuracy | +/-0.3º Celsius |
Preset timing | 1-999 minutes(nine points) |
Time accuracy | +/-0.5minute |
Paddle radial run-out | +/-0.5mm |
Basket radial run-out | +/-1mm |
Power | 1200W |
Power supply | AC,220V/50HZ or 110V/60HZ |
Weight | 47 kg |
Overall size | 960x440x480 mm |

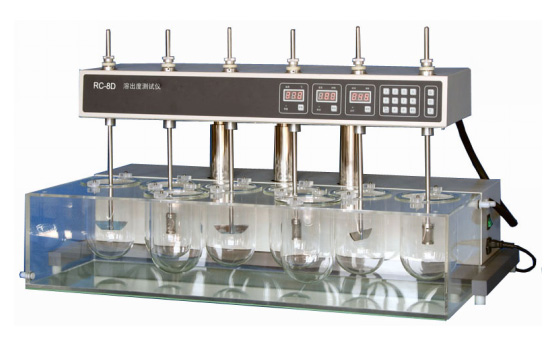

RC-8D Dissolution tester
Descriptions
RC series of instruments are used for detecting velocity and extent of pharmic dissolution from tablet, capsule etc in prescriptive menstruum.
Applicable standards:
National standard (Chinese codex) /2005/
Corporate standard (Dissolution tester) Q/12XQ0187-2004
Features
- It has eight vessels and six poles, with six vessels and six poles at back and other two vessels in front.
- The head part up/down automatically.
- The basket units and paddle units are made of imported stainless steel (SUS 316L)
- The magnetism-pumped circular water current can heat the system evenly, and the bath liquid can achieve an equal temperature.
- A MPU is used in dissolution tester to automatically control the temperature, rotational speed and time, and the parameters can be preset at any time.
- It can be operated conveniently by keystroke, the measurement result is displayed on LED, the preset and real data can be displayed alternately in time.
- Automation: Auto-test, auto-diagnose, auto-alarm.
- It can test by itself and alarm automatically. The dissolution parameters of "Chinese codex 2000" are stored in and can be taken out at anytime.
- Time can be preset at many points, the beeper sounds automatically to any point, and then the tester automatically runs to the next one.
Technical Parameters
Speed range | 20-200 r/min |
Speed accuracy | +/-2 r/min |
Temperature range | Room temperature to 45º Celsius |
Temperature accuracy | +/-0.3º Celsius |
Preset timing | 1-999 minutes(nine points) |
Time accuracy | +/-0.5mm |
Paddle radial run-out | +/-0.5mm |
Basket radial run-out | +/-1mm |
Power | 1200W |
Power supply | AC,220V/50HZ or 110V/60HZ |
Weight | 58 kg |
Overall size | 960x520x480 mm |

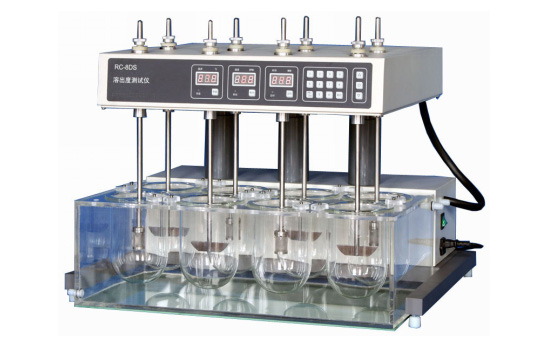

RC-8DS Dissolution tester
Descriptions
RC series of instruments are used for detecting velocity and extent of pharmic dissolution from tablet, capsule etc in prescriptive menstruum.
Applicable standards:
National standard (Chinese codex)/ 2005/
Corporate standard (Dissolution tester) Q/12XQ0187-2004
Features
- It has eight vessels and eight poles with four vessels and four poles in front and others at back.
- The head part moves up/down automatically.
- The basket units and paddle units are made of imported stainless steel (SUS 316L)
- The magnetism-pumped circular water current can heat the system evenly, and the bath liquid can achieve an equal temperature.
- A MPU is used in dissolution tester to automatically control the temperature, rotational speed and time, and the parameters can be preset at any time.
- It can be operated conveniently by keystroke. The measurement result is displayed on LED, the preset and real data can be displayed alternately in time.
- Automation: Auto-test, auto-diagnose, auto-alarm.
- It can test by self and alarm automatically, the dissolution parameters of "Chinese codex 2000" are stored in and can be taken out at anytime.
- Time can be preset at many points, the beeper sounds automatically to any point, and then the tester automatically runs to the next one.
Technical Parameters
Speed range | 20-200 r/min |
Speed accuracy | +/-2 r/min |
Temperature range | Room temperature to 45º Celsius |
Temperature accuracy | +/-0.3º Celsius |
Preset timing | 1-999 minutes(nine points) |
Time accuracy | +/-0.5 minute |
Paddle radial run-out | +/-0.5mm |
Basket radial run-out | +/-1mm |
Power | 1200W |
Power supply | AC,220V/50HZ or 110V/60HZ |
Weight | 75 kg |
Overall size | 680x540x480 mm |
