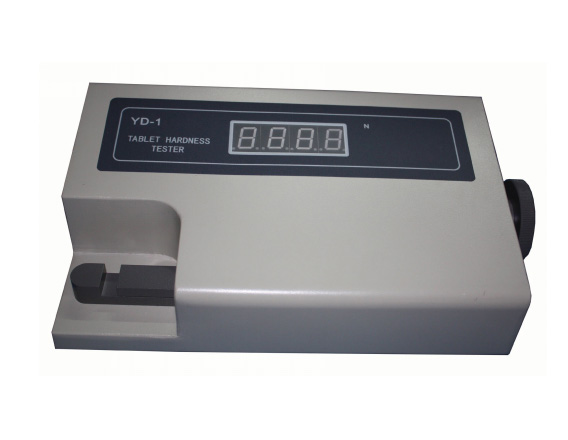

YD-1 Tablet Hardness Tester
Descriptions
Tablet hardness testers are instruments for detecting breaking hardness of tablet.
Applicable standard:
Corporate standard (Tablet hardness tester) Q/12XQ0186-2005
Features
- The tablet is loaded and pressed artificially.
- It has high accuracy pressure sensor and hardness data is displayed on LED.
- It tests tablet hardness continuously.
- Test data is displayed and locked automatically, so can test be rest and cycled.
- Automation: auto-test, auto-diagnose, auto-alarm.
Technical Parameters
Hardness range | 2-199.9 N |
Hardness accuracy | +/-0.5% |
The range of test diameter | 3-20 mm |
Continuous working hours | >24 hours |
Power | 10W |
Power supply | AC,220V/50HZ or 110V/60HZ |
Weight | 5 kg |
Overall size | 320x200x100 mm |

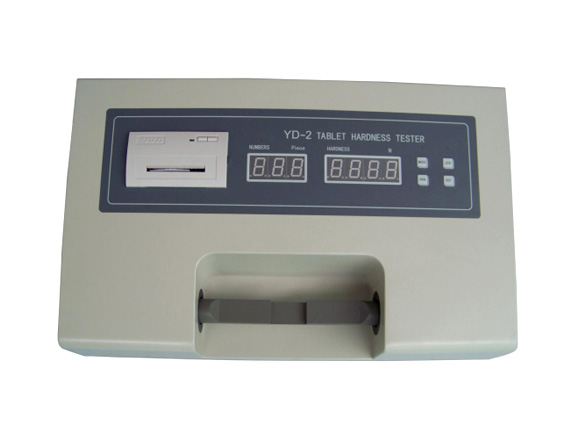

YD-2 Tablet Hardness Tester
Descriptions
Tablet hardness testers are instruments for detecting breaking hardness of tablet.
Applicable standard:
Corporate standard (Tablet hardness tester) Q/12XQ0186-2005
Features
- The tablet is loaded and pressed artificially and printed automatically. .
- There is high accuracy pressure sensor and hardness data is displayed on LED.
- It tests tablet hardness continuously. The biggest number is 100 pieces of a gang.
- Time of testing will be saved by directly measuring the diameter.
- Test data is displayed and locked automatically. so can test be reset and cycled.
- It can deal with and print out such data as: hardness of each tablet, the maximum value, the minimal value, the average value and the number of tablets.
- The parameters can be preset at any time .Either preset or real data is displayed on the LED.
- Automation: auto-test, auto-diagnose, auto-alarm.
Technical Parameters
Hardness range | 2-199.9 N |
Hardness accuracy | +/-0.5% |
The range of test diameter | 3-40 mm |
The test time per tablet | < 20 s |
The number in each group | < 100 tablets |
Continuous working hours | >24 hours |
Power | 60W |
Power supply | AC,220V/50HZ or 110V/60HZ |
Weight | 12 kg |
Overall size | 500x300x160 mm |

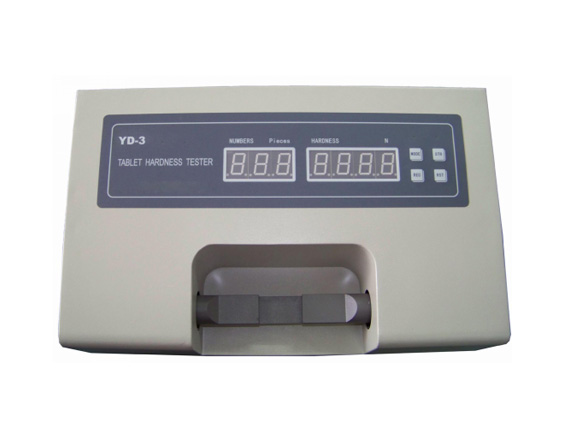

YD-3 Tablet Hardness Tester
Descriptions
Descriptions
Tablet hardness testers are instruments for detecting breaking hardness of tablet.
Applicable standard:
Corporate standard (Tablet hardness tester) Q/12XQ0186-2005
Features
- The tablet is loaded and pressed artificially and pressed automatically.
- There is high accuracy pressure sensor and hardness data is displayed on LED.
- It tests tablet hardness continuously. The biggest number is 100 pieces of a gang.
- Time of testing will be saved by directly measuring the diameter.
- Test data is displayed and locked automatically .so can test be reset and cycled.
- It can deal with and memorize such data as: hardness of each tablet, the maximum value, the minimal value, the average value and the number of tablets.
- The parameters can be preset at any time .Either preset or real data is displayed on the LED.
- Automation: auto-test, auto-diagnose, auto-alarm.
Technical Parameters
Hardness range | 2-199.9 N |
Hardness accuracy | +/-0.5% |
The range of test diameter | 3-40 mm |
The test time per tablet | < 20 s |
The number in each group | < 100 tablets |
Continuous working hours | >24 hours |
Power | 60W |
Power supply | AC,220V/50HZ or 110V/60HZ |
Weight | 10 kg |
Overall size | 400x240x160 mm |
