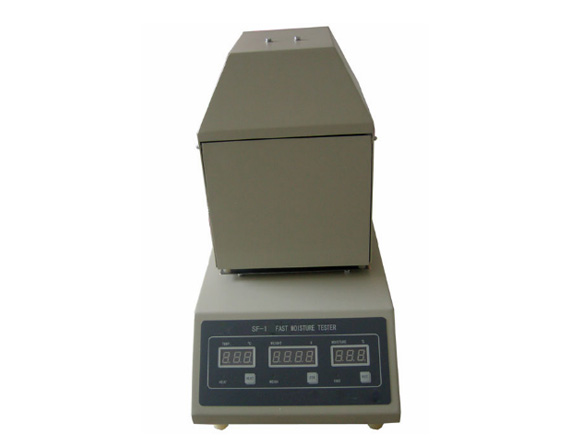

SF-1 Moisture Teller
Descriptions
The instrument is suitable for testing water in powder or granule.
Applicable standards:
National standard (Chinese codex) /2005/
National standard (Food additive Gelatin) GB6783-94
Corporate standard (Fast moisture tester) Q/12XQ0191-2004
Features
- Drying in constant temperature with infrared lamp, heat being focused, and drying fast.
- High-precision temperature sensor, auto frequency conversion control technology, high accuracy in controlling temperature.
- High-precision weight sensor, high accuracy in weighing.
- Auto-test lost weight in drying, auto-calculate remainder water after weight being constant.
- Auto-preset drying temperature, auto-test moisture, displays preset and real-time data alternately in time.
- Automation: auto-test, auto-diagnose, auto-alarm.
Technical Parameters
Tested moisture range | (0-99.9)% |
Moisture testing accuracy | +/-0.5% |
Drying temperature | 50-120 degree Celsius |
Temperature accuracy | +/-2 degree Celsius |
Weight testing range | (0-19.99) g |
Weight testing accuracy | +/-0.02 g |
Sample weight | 4-6 g |
Testing time | 10-30 minutes |
Infrared lamp | AC,220V/50HZ/250W |
Power | AC,220V/50HZ/300W |
Weight | 8.1 kg |
Overall size | 400x300x420 mm |

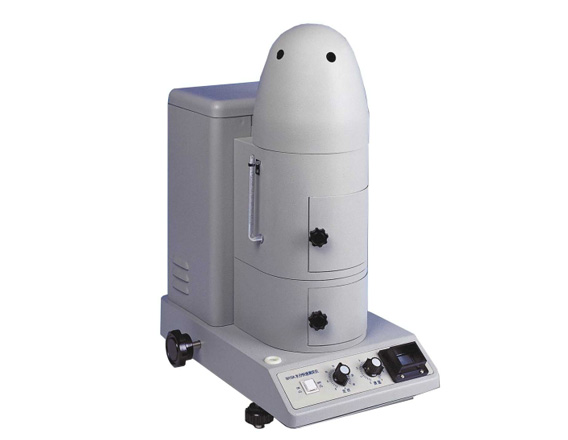

SH10A Moisture Teller
Descriptions
The instrument is applied to measure the free water of various samples, such as medicine, corn, biological products, chemical materials, mineral, foodstuff, paper and dry goods etc.
Features
- The instrument is compose of double plate balance, IR dry box, electric temperature Control and thermometer etc. It bakes quickly, and works with good repeatability.
- Magnetic damping design.
- The timing range is 30 minutes, temperature is adjustable.
- Operator can intuitively see the percentage of water content weighing on its display.
- The temperature control adopts semi-conductor heat-sensitive resistor and controlled silicon circuit, and it is quick in rise of temperature, and stable in temperature keeping, and the fluctuation in mains voltage only slightly affects the temperature.
- Automation: auto-test, auto-alarm.
Technical Parameters
Tested moisture range | 0-99.9% |
Accuracy of the water content meter | +/- 0.2% |
Temperature adjusting range | 60-170 degree Celsius |
Temperature accuracy | +/- 2 degree Celsius |
Max. weight | 10 g |
Division value | 0.005 g |
Scale readable range | 0-1 g |
Scale diameter | 100 mm |
Testing time | 1-30 minutes |
Reading value mode | %(water content); g(dry weight) |
Power | 260 W |
Power supply | AC, 220V/50HZ or 110V/60HZ 1 phase |
Net weight | 10.8 kg |
Overall size | 290x365x560 mm |
