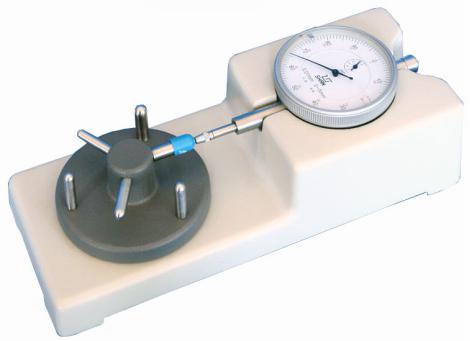

HD-1 mini capsule thickness tester
Descriptions
The tester is a special test instrument for detecting the thickness of various capsules.
Applicable standard:
Corporate standard (thickness tester) Q/12XQ0194-2004
Features
- Used for measuring thickness of peak and wall of capsule.
- High-accuracy test with the most precise, high quality homemade centigrade meter.
Technical Parameters
Test range | 0 ~ 5mm |
Test accuracy | +/-0.01mm |
Applied capsule type | 00, 0, 1, 2, 3, 4, 5 |
Weight | 0.9 kg |
Overall size | 200x80x50mm |

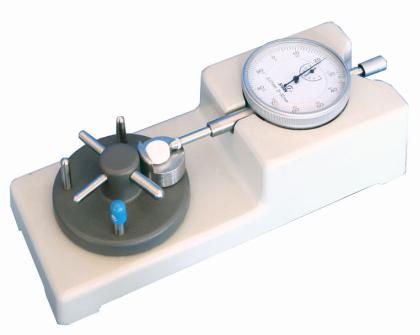

HD-2 mini integrative thickness tester
Descriptions
The tester is a special test instrument for detecting thickness of capsule and tablet.
Applicable standard:
Corporate standard (thickness tester) Q/12XQ0194-2004
Features
- Used for measuring thickness of peak and wall of capsule & the diameter of tablet and Pill.
- High-accuracy test with the most precise, high quality homemade centigrade meter.
Technical Parameters
Test range | 0 - 30 mm |
Test accuracy | +/-0.01 mm |
Applied capsule type | 00, 0, 1, 2, 3, 4, 5 |
Weight | 0.9 kg |
Overall size | 200x80x50 mm |

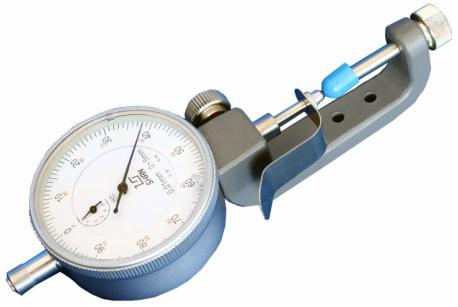

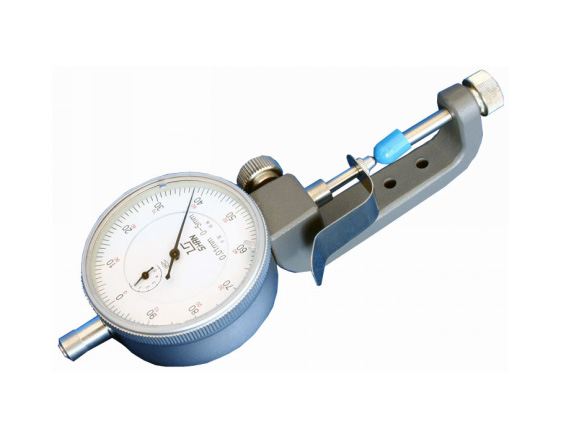

HD-3 hand-hold type capsule thickness tester
Descriptions
The tester is a special tester instrument for detecting thickness of various capsules.
Applicable standard:
Corporate standard (thickness tester) Q/12XQ0194-20004
Features
- Used for measuring thickness of peak and wall of capsule.
- High-accuracy test with the most precise, high quality homemade centigrade meter.
Technical Parameters
Test range | 0 - 5 mm |
Test accuracy | +/-0.01 mm |
Applied capsule type | 00, 0, 1, 2, 3, 4, 5 |
Weight | 0.3 kg |
Overall size | 160x60x40 mm |

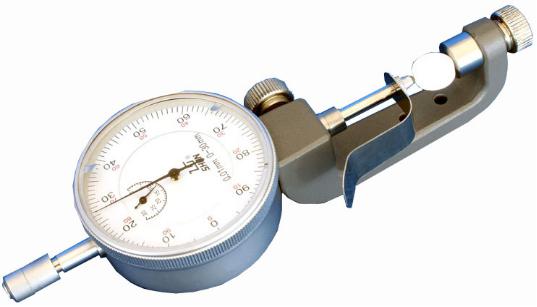

HD-4 hand-hold type integrative thickness tester
Descriptions
The tester is a special test instrument for detecting thickness of tablet and capsule.
Applicable standard:
Corporate standard (Thickness tester) Q/12XQ0194-2004
Features
- Used for measuring thickness of peak and wall of capsule & the diameter of tablet and Pill.
- High-accuracy test with the most precise, high quality homemade centigrade meter.
Technical Parameters
Test range | 0 - 30 mm |
Test accuracy | +/-0.01 mm |
Applied capsule type | 00, 0, 1, 2, 3, 4,5 |
Weight | 0.3 kg |
Overall size | 160x60x40 mm |
Price list:
Model | HD-1 | HD-2 | HD-3 | HD-4 |
Price(FOB Shanghai, T/T or WU payment) | USD 125 | USD 155 | USD 80 | USD 110 |
