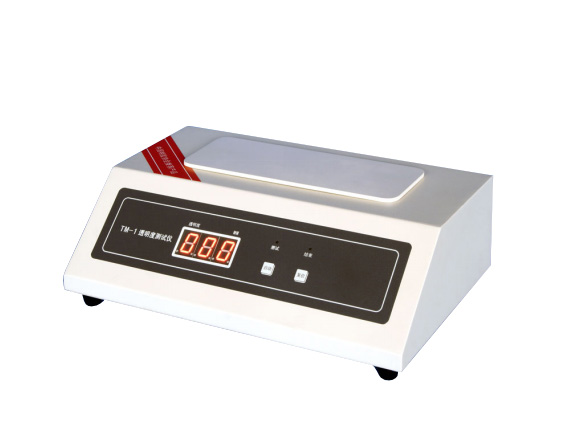

TM-1 Transparency tester
Descriptions
Transparency tester is requisite for detecting transparency of gelatin.
Applicable standards:
National standard (Food additive Gelatin) GB6783-94
National standard (Hard gelatin capsule for medicine) GB13731-92
Vocation standard (Gelatin for medicine) QB2354-98
Features
- Thoroughly eliminating the influence to results by environment and experimenters visual error.
- Standard test tube and same capacity of sample.
- High stable light source system, equal brightness.
- High precise photoelectric transducers for testing exactly.
- Auto-testing, transparency being conversion accounted automatically.
- Automation: auto-test, auto-diagnose, auto-alarm.
Technical Parameters
Test range | 20-500 mm |
Test accuracy | +/- 5 mm |
Capacity | 400 ml |
Power | 80 W |
Power supply | AC,220V/50HZ or 110V/60HZ 1 phase |
Weight | 7 kg |
Overall size | 360x240x120 mm |

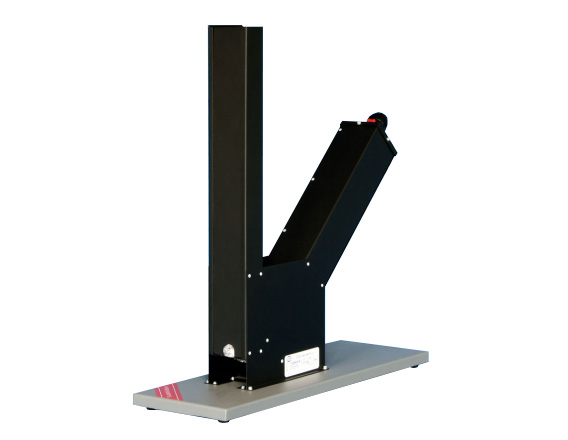

TM-2 Transparency tester
Descriptions
Transparency tester is requisite for detecting transparency of gelatin.
Applicable standards:
National standard (Food additive Gelatin) GB6783-94
National standard (Hard gelatin capsule for medicine) GB13731-92
Vocation standard (Gelatin for medicine) QB2354-98
Features
- Thoroughly eliminating the influence to results by environment.
- Sample being conveniently taken out or put in using standard test tube.
- Airtight light source system.
Technical Parameters
Test range | 20-500 mm |
Test accuracy | +/- 5 mm |
Capacity | 400 ml |
Power | 100 W |
Power supply | AC,220V/50HZ or 110V/60HZ phase |
Weight | 11 kg |
Overall size | 600x200x630 mm |
