air drive filling machine

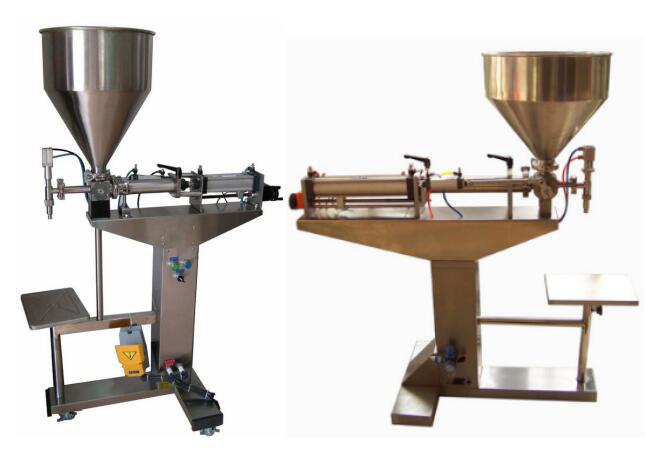

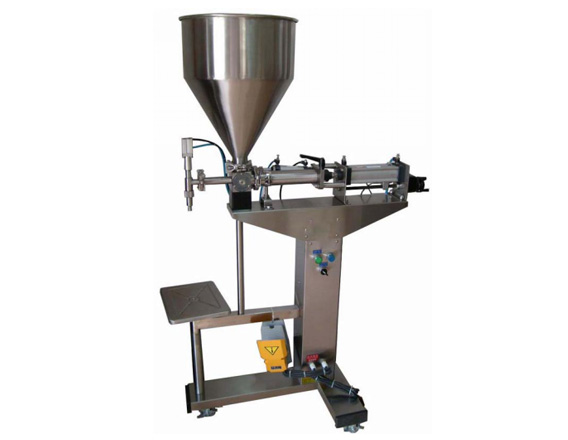

GZ series air drive ointment and liquid double-duty filling machine

Descriptions

It is a mini liquid filling machine. The machine is applied to quantitative filling ointment or liquid into various containers.
This machine is widely used in pharmacy, foodstuff, cosmetic and chemical etc industries.
Such as: tooth paste, ointment, syrup, jam, shoeshine, oil paint, printing ink, drink, paste, snowflake cream, magma, butter, lube, alcohol, pesticide, and so on.



Features

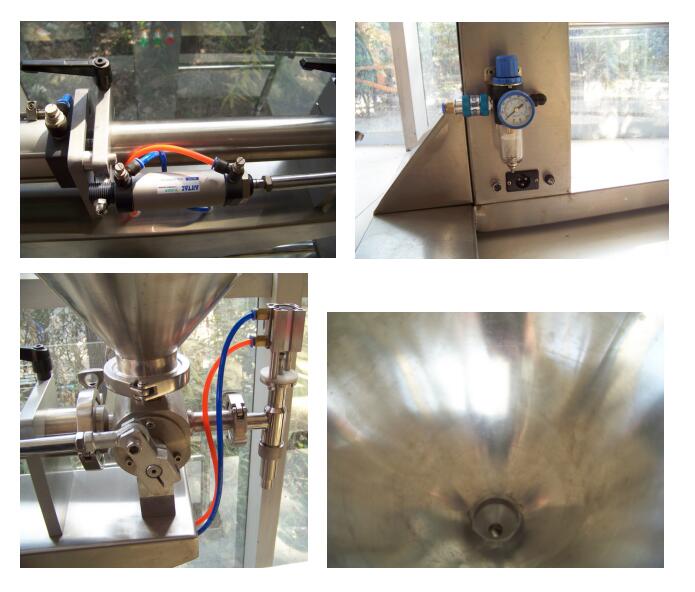

- 95% parts that contact with the materials are made of high quality stainless steel, no easy pollution, easy cleaning, meet the GMP standard.

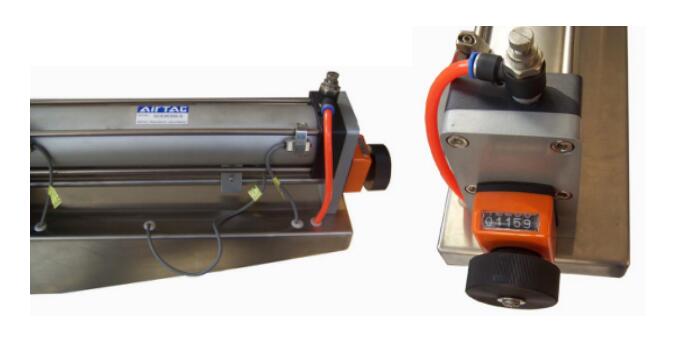

- Its structure is reasonable, adopts pedal and automatic adjust filling volume, easily operation and maintenance.
- This machine is controlled by compressed air, so it is suitable in anti-explosion or moist environment.
- It is an economical and applied filling machine, It is applied to trial manufacturing or batch produce in small scale in factory, lab, hospital, science research department or in house use it.
- The machine adopts vacuum reclaim and split second stop flow device, no leakage, save materials and time, guarantee filling effect.
Many in last years, this machine won the large customer's good opinion by excellent quality and very low price.
There are some counterfeit products on market now, please keep away them.



Technical Parameters

Model

GZ-100

GZ-250

GZ-500

GZ-1000

GZ-2000

Filling volume

10-100 ml

30-250 ml

100-500 ml

200-1000 ml

500-2000 ml

Filling accuracy

< 1%

< 1%

< 1%

< 1%

< 1%

Work type

Air drive

Electric

Air drive

Electric

Air drive

Electric

Air drive

Electric

Air drive

Electric

Air pressure

0.4-0.6MPa

0.4-0.6MPa

0.4-0.6MPa

0.4-0.6MPa

0.4-0.6MPa

Capacity

20-25 times/min

20-25 times/min

12-18 times/min

8-14 times/min

6-10 times/min

Power supply

AC,220V/50HZ

Or customized

AC,220V/50HZ

Or customized

AC,220V/50HZ

Or customized

AC,220V/50HZ

Or customized

AC,220V/50HZ

Or customized

Power

20W

20W

20W

20W

20W

Net weight

35 kg

35 kg

45 kg

45 kg

75 kg

overall size

980x550x1450 mm

1000x550x1550

mm

1100x550x1600

mm

1300x670x1650

mm

1650x700x1700

mm
