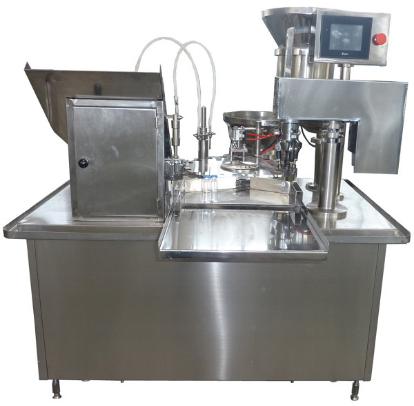

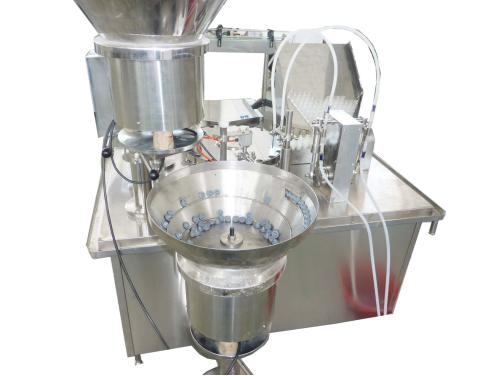

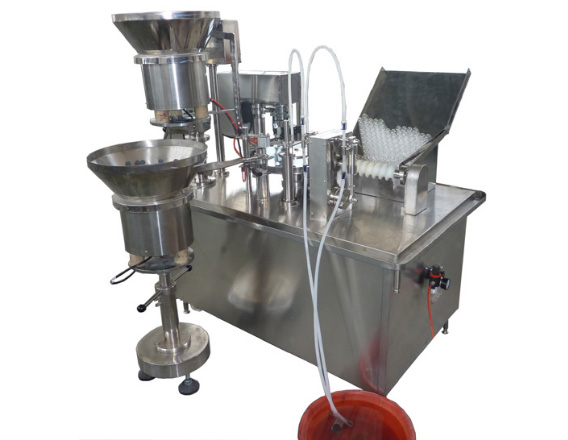

KGF-40 Liquid filling & sealing machine





This machine is the filling apparatus in the oral liquor assembly line, which is mainly applied in filling, lidding, screw sealing of 2 - 30 ml bottles. The operation of filling and sealing is combined in this machine with its advanced design and compact structure.

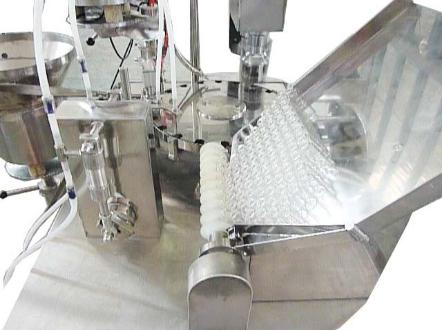

There are two filling nozzles on this machine, guarantee the filling is smooth.
This machine can customized according to customers' specific request.


Technical Parameters

Applied bottles

5 -30 ml glass bottle and plastic bottle

Production capacity

40 bottles/min


0 - 2%

Sealing rate

≥ 99%


1.3 KW

Power supply

AC, 380V/50HZ 3 phase or 220V/50HZ 1 phase

Net weight

650 kg

Overall size

1380x 960x 1480 mm
