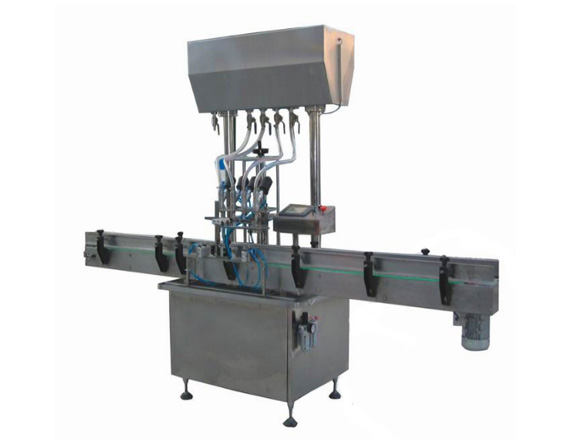

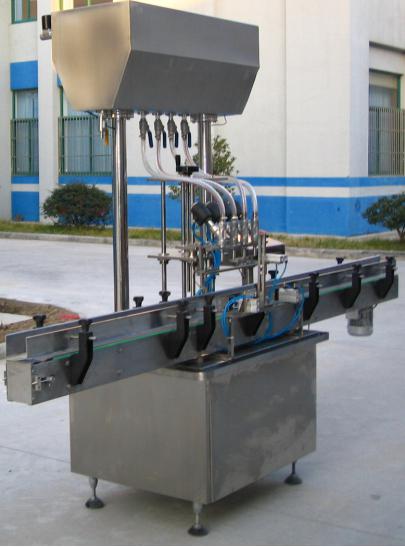

KGF-X Flow-type liquid filling machine
Descriptions
This machine is suitable for filling disinfectant, pesticides, oil, and high-dose beverage.
This machine adopts flow-type filling, PLC control, touch screen operation.
The filling volume can be adjusted easily.
Technical Parameters
Production capacity | Four filling nozzles : 1200 - 2400 bottles/hour Eight filling nozzles : 2400 - 4800 bottles/hour |
Applied bottle | ≥200 ml |
Filling accuracy | ±1 % |
Air consumption | 5 m3/h |
Power | 1.5 KW |
Power supply | AC,380V/50HZ 3 phase or customization |
Overall size | 3000 x 900 x 2100 mm |
