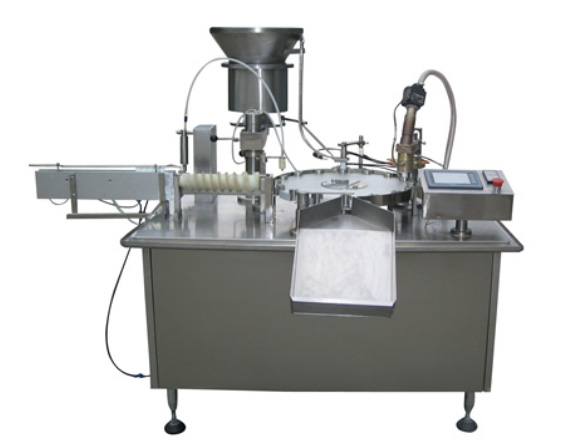

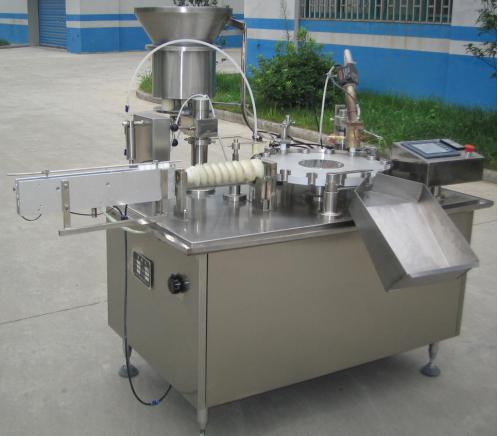

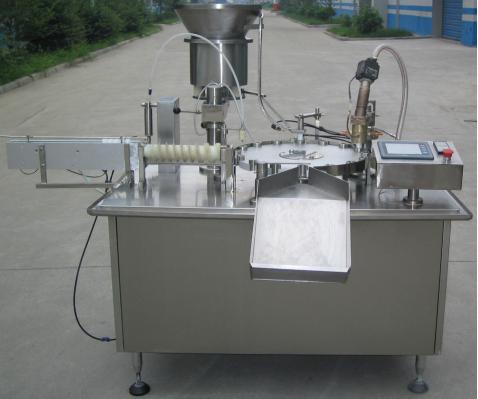

KGF-Y Easy-folding plastic bottle filling & sealing machine
Descriptions
This machine is suitable for filling and sealing to easy-folding plastic bottle.
Automatic feeding, filling the bottom, hot-melt sealing.
PLC control, touch screen operation; missing bottle, no filling; automatic
Counting, functions steady.
Technical Parameters
Production capacity | One filling nozzle : 1800 - 2400 bottles/hour Two filling nozzles : 3600 - 4800 bottles/hour Four filling nozzles : 7200 - 9600 bottles/hour |
Applied bottle | 10 ml, 15 ml, 20 ml easy-folding plastic bottle |
Filling accuracy | ±1 % |
Air consumption | 1 m3/h, 0.8 MPa |
Power | 9 KW |
Power supply | AC,380V/50HZ 3 phase or customization |
Overall size | 4500 x 2200 x 2000 mm |
