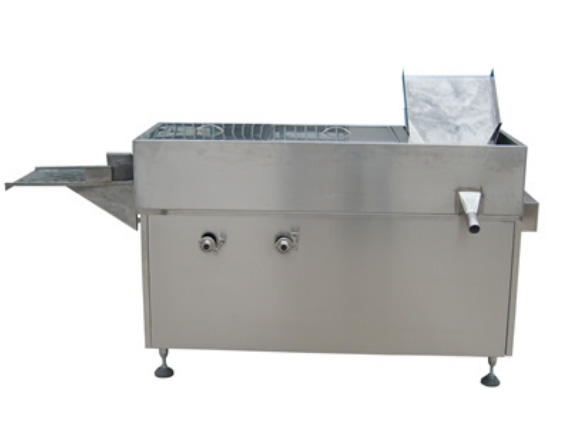

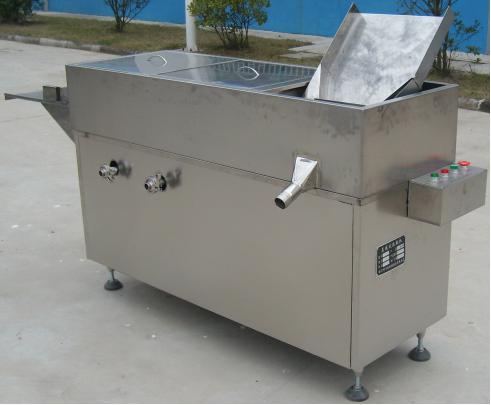

KXP Linear type bottle cleaning machine





This machine is the cleaning equipment in the oral liquid production line, which Is mainly applied in the cleaning of straight tube bottle with 5 to 20 ml EPOL, Aluminum plastic combined lid (or safety lid). This machine transports the bottle by screw, and the bottles are double cleaned Inside and outside with pressed recycled water, ionized water (or other washing Solution).Then blew off the left water with purified compressed air.


Technical Parameters

Production capacity

4800 - 6000 bottles/hour

Applied bottle

10 ml - 20 ml, straight tube bottle

Pressed water consumption

0.5 m3/h

Purified compressed air consumption

0.4 m3/h


2 KW

Power supply

AC,380V/50HZ 3 phase or customization

Overall size

2200 x 750 x 1500 mm
