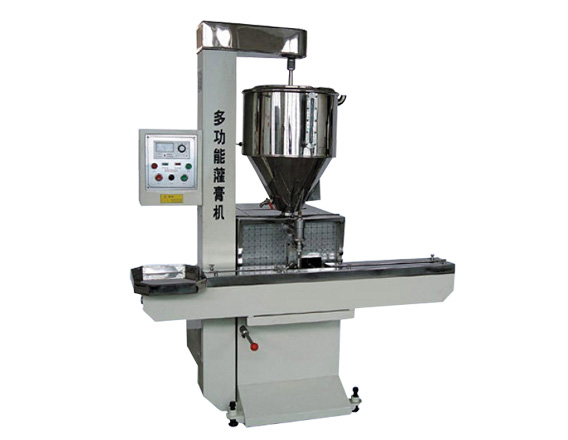

ZDG-B Multifunctional ointment filling machine

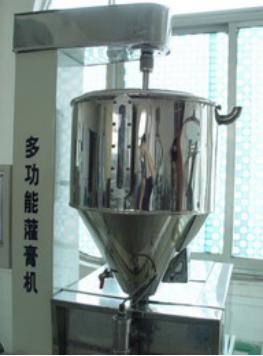

There is one hopper of 35 kg with heater mixer on the machine, and there is also one heater on the pipe and filling nozzle, so the machine is applied to fill various viscous materials, such as lipstick, Adhesive, crayon, foundation cream and ointments and so on.
The machine is widely used in pharmacy, daily cosmetic, chemical etc industries.



- Mixing of uniform speed, heating of constant temperature, so the machine is applied to fill various viscous materials.
- Outside and all parts are made of stainless steel, exquisite, easy cleaning, meet the GMP standard.

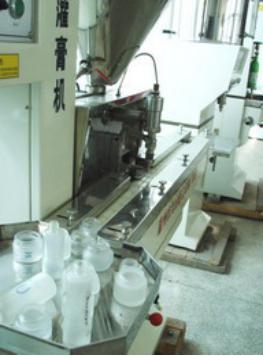

- Equipped one conveyor with turnplate, so the machine can finish filling automatically, and Maximum filling speed is 1800 bottles/hour.
- Equipped one control panel, automatic electric control, simple and trusty.
- Filling volume can be adjusted in filling range at will.
- Filling accuracy is less than 1%, meet the national standards.
- The noise of single machine is less than 50 dB.


Technical Parameters

Filling range

10-100g, 50-250 g

Filling speed

600-1800 bottles/hour

Filling accuracy

< 1%

Heating power


Motor power

0.75 KW


AC,220V/50HZ 1 phase or customization

The speed of mix round

36 r/min

Applied bottle

Ø40-80mm,height: 20-80 mm


35 kg


Length: 1480 mm

Overall size

1480X960X1830 mm


550 kg
