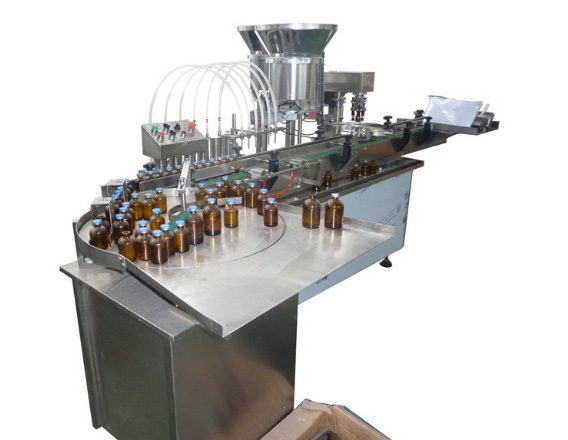

QGS-T  Linear liquid filling& capping machine

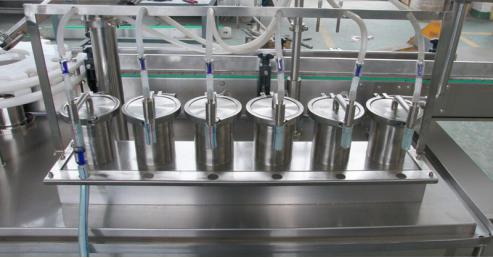

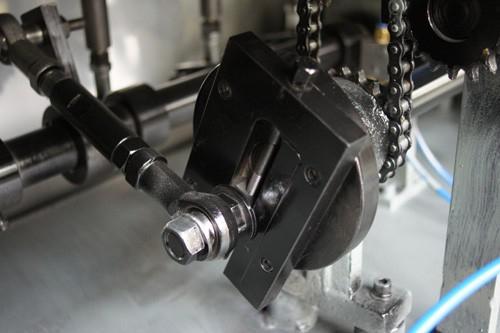

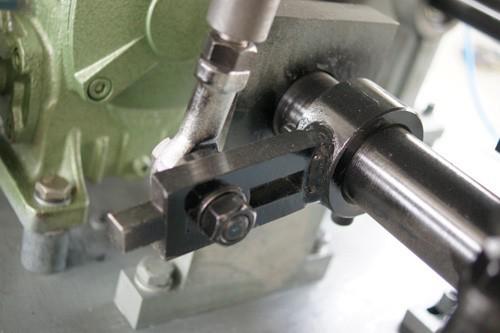

Dosing pump big adjusting                                                      Dosing pump small adjusting

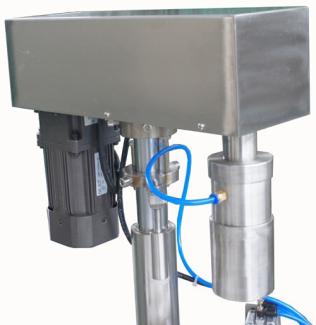

   Sealing unit



This machine is the main filling equipment of the bottle production line, which is Mainly applied in the filling, plugging, covering and capping of 10 – 500 ml bottles.
This machine combines filling and sealing, advanced design, compact structure, the Replacement of the bottles is very convenient.


Technical Parameters

Production capacity

2400 - 3600 bottles/hour

Applied bottle

10 - 500 ml, Glass bottle or plastic bottle

Sealing rate

≥ 99%

Sealing method

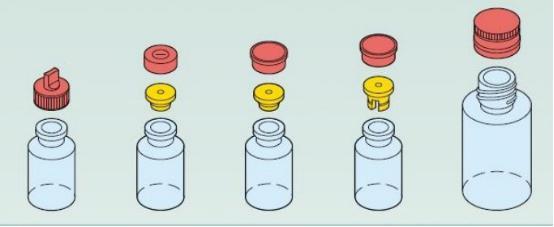

Screw cap, rolling screw lid or cover spin


2 KW

Power supply

AC,380V/50HZ 3 phase or customization

Overall size

1400 x 1000 x 1650 mm
