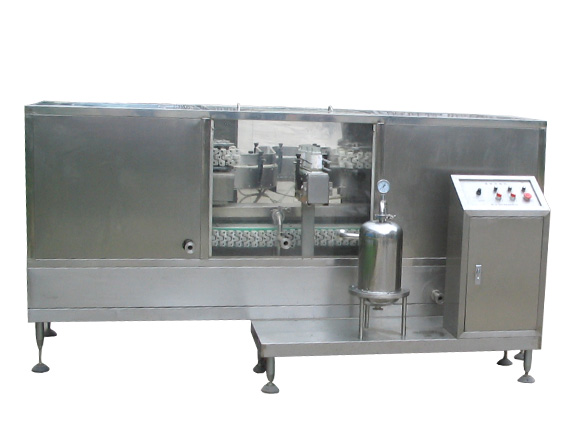

TXP General washing machine
Descriptions
This machine is decontamination equipment of glass bottle; it is used in all kinds of cleaning of heterogeneous bottle and round bottle. Uses parallel clamps the bottle turn over transmission, and clamps the bottle caterpillar tread spacing adjustability and the reliability; Each bottle can pass trough multi-channel returns the water used, the pure water and purification compressed air clean processing, achieves the ideal clean effect.
Technical Parameters
Production capacity | 3600 - 7200 bottle/hour (I type) 7200 - 12000 bottle/hour (II type) |
Applied bottle | 50 ml - 1000 ml, glass bottle or plastic bottle |
Water to flow | 0.5 - 1 m3/h, pressure: 0.2 - 0.3 MPa |
Consumption of purification water | 0.5 - 0.6 m3/h, pressure: 0.2 - 0.3 MPa |
Consumption of compressed air | 0.6 m3/h, pressure: 0.2 - 0.3 MPa |
Power | 3 KW |
Power supply | AC,380V/50HZ 3 phase or customization |
Overall size | 2400(3000) x 1100 x 1600 mm |
