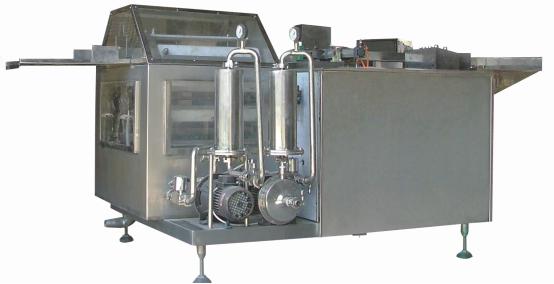

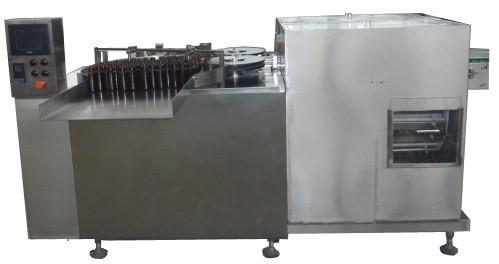

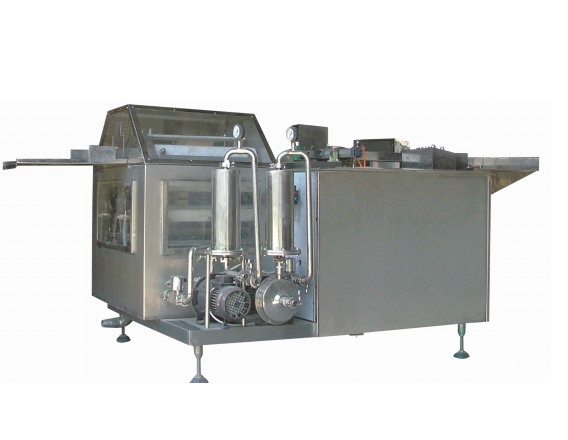

XLP Clinical bottle washing machine



This machine is applied in clinical bottle and dropping bottle cleaning use to turn the drum frame, and provide a dish to provide the bottle, and be sent by stir the round bottle, turn the drum intermittent into the bottle, use again back to use the water (Or running water), go to leave the son water (or distilled water) and decontamination compressed air to hand over for flush to complete the bottle-water.


Technical Parameters

Production capacity

3600 - 6000 bottles/hour

Applied bottle

50 - 500 ml, Glass bottle

Recycling water consumption

0.5 m3/h Pressure: 0.25 - 0.3 MPa

Leave the son water consumption

0.5 m3/h Pressure: 0.25 - 0.25 MPa

Purified compressed air consumption

0.5 m3/min Pressure: 0.25 - 0.25 MPa


2 KW

Power supply

AC,380V/50HZ 3 phase or customization

Overall size

2000 x 1400 x 1500 mm
