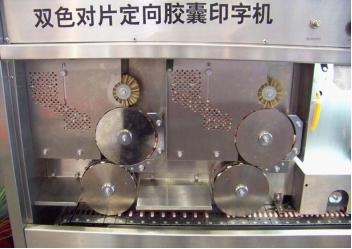

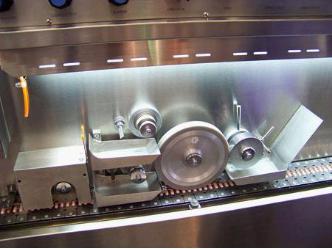

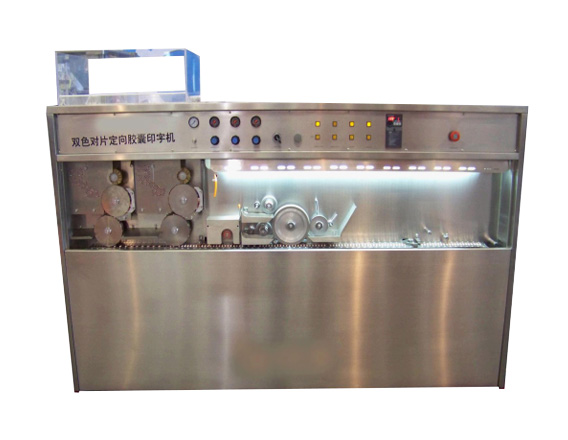

capsule printer YSD-G

YSD-G Double photo register directional capsule printer





This machine is applied to printing the outer cap bodies of various specifications and models of capsules of capsules in a directional and two-color registration manner. And it also can print various characters, patterns and trademarks according to the customers' so as to as to beautify the appearances of capsules, upgrade the products, increase the advisement of product, promote the enterprise image and achieve the effect of forgery prevention.



- The compact machine body makes it beautiful and elegant in appearance. All the surfaces and the external surface of the machine body that the drugs can contact are made of stainless steel, so it is up to "GMP" standard.
- It employs variable frequency speed regulation and touch type electric control system to make your operation more convenient and free.
- This machine features in high productivity and low printing cost.
- The printing angle for capsule: ≤ 270°


Technical Parameters

Production capacity

≤ 100000 capsules/hour

Power supply

AC,220V/50HZ 1 phase or customization

Motor power

0.25 KW

Total power

0.75 KW

Air compressor

40 Pa


≤ 85 dB

Net weight

230 kg

Overall size

2000(L) x 450(W) x 1400(H) mm
