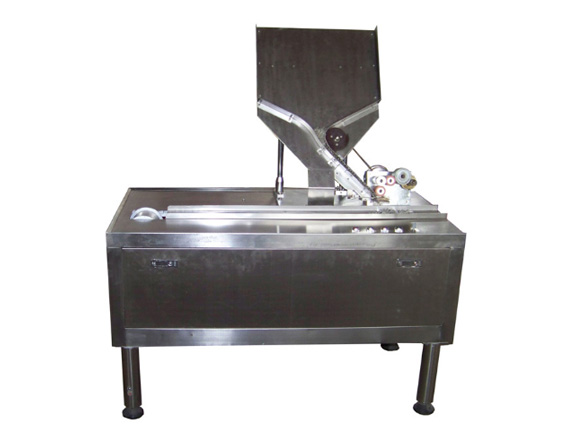

YZ semiautomatic ampoule printer
Descriptions
This machine is applied to the needle ampoule bottle printing, applied ampoule: 1-2 ml, 5-10 ml and 20 ml.
The worktable of the machine is made of 304# stainless steel, washing is easy, meet the GMP standard.
Technical Parameters
Applied ampoule | 1-2 ml | 5-10 ml | 20 ml |
Production capacity | 32000 pcs/hour | 19000 pcs/hour | 15000 pcs/hour |
Materials | 1.2 mm, SUS304 |
Motor power | 500 W |
Overall size | 3500x800x1500 mm |
Printer motor | Z250/15 220V |
Conveyor reduce speed motor | WPA40 30:1 |
Conveyor motor | JY134 370W/220V |
Toucher | CDC10-10 36V |
Control transformer | BK-100 |
Button | LA19-11D |
Touch booster | TDGC2-500VA |
Fuse | RL1-15 |
