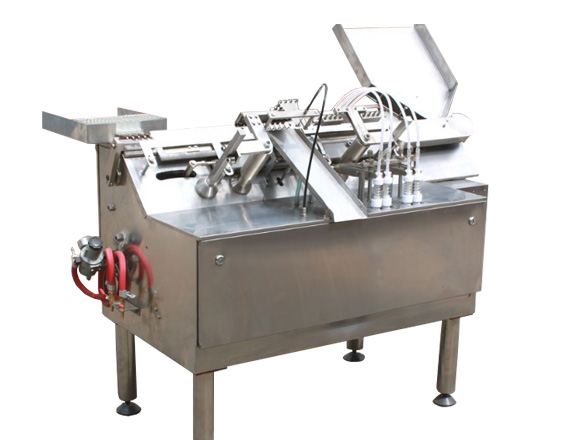

ALG4 series Four needles ampoule filling and sealing machine
Descriptions
The machine is a new generation of the ampoule drawing, filling and sealing combined equipment for injections. It adopts the rectangular feeding instead of the traditional ampoule feeding methods. In such case, the feeding is steady with no easy broken ampoule. A modern clutch is mouthed under the ampoule feed hopper.
Therefore, the ampoule feeding can be stopped at any time while the machines is still running. So the ampoule lost can be reduced. In the part of stopping filling where changes electromagnetic switch into mechanical switch. It is reliable and durable, bottle reverse and bottle arranging structure are used in the device of bottle outlet. It reduces the broken rate of the finished product.
Technical Parameters
Model | ALG4/1-2 | ALG4/5-10 |
specification | 1 - 2 ml | 5 - 10 ml |
Production capacity | 7000-9000 bottles/hour | 6000-8000 bottles/hour |
Precision of filling & sealing | ±1% | |
Broken rate of the ampoule | ≤ 1% | |
Sealing rate | ≥ 98% | |
Sealing gas | 1) Coal gas + oxygen 2) Liquid gas + oxygen | |
Pressure of gas | 1) Coal gas = 0.9-1 MPa 2) Oxygen = 0.08-0.1 MPa | |
Power | 0.67 KW | |
Power supply | AC, 380V/50HZ 3 phase or customized | |
New weight | 350 kg | |
Overall size | 1650 x 900 x 1500 mm | |
Model | ALG4/20 |
specification | 20 ml |
Production capacity | 4000-5000 bottles/hour |
Precision of filling & sealing | ±1% |
Broken rate of the ampoule | ≤ 1% |
Sealing rate | ≥ 98% |
Sealing gas | 1) Coal gas + oxygen 2) Liquid gas + oxygen |
Pressure of gas | 1) Coal gas = 0.9-1 MPa 2) Oxygen = 0.08-0.1 MPa |
Power | 0.67 KW |
Power supply | AC, 380V/50HZ 3 phase or customized |
New weight | 350 kg |
Overall size | 1650 x 900 x 1500 mm |
I. Delivery time:
10 days after receiving the payment
II. Payment:
T/T or Western Union
III. Guarantee:
One year quality guarantee and spare parts for one year free of charge.
IV. After service:
The buyer will pay the all cost of the seller's person to go abroad for installation and training, including the go and back tickets, the local housing and food, the local transfer and so on.
V. This quotation is available within 30days
