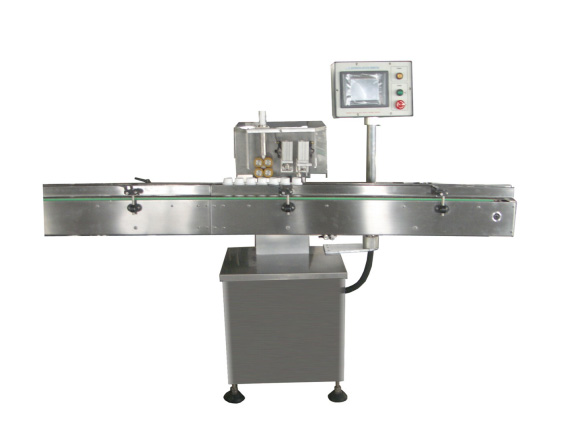

CI200 Cotton insert machine
Descriptions
CI200 is economical and easy to operate.
The machine can automatically cut off the belted cotton and insert it into the container accurately and speedy.
This fully automatic cotton insert machine inserts a predetermined length of cotton, rayon or polyester coil into containers at speeds up to 80 bottles/min.
Features
- Insert speed up to 80 bottles/min.
- Heavy duty construction
- Guillotine tearing device
- PLC and HMI control.
Technical Parameters
Insert speed | 40-80 bottles/minutes |
Power | 1500 W |
Power supply | AC,220V/50HZ 1 phase or customized |
Working direction | Left → Right (or Right → Left) |
Weight | 250 kg |
Overall size | 1600mmx600mmx1500 mm ( Length x Width x Height ) |
