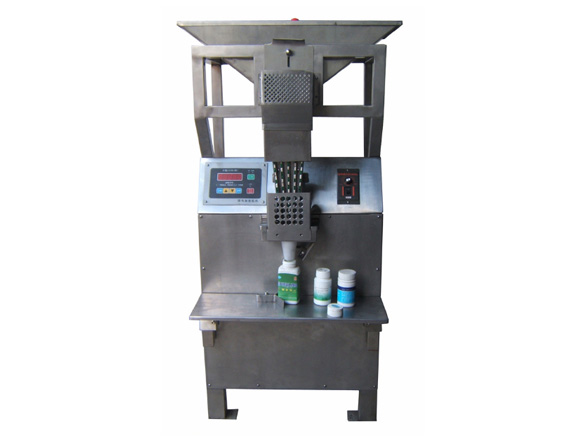

HYC-II  Mini electronic capsule counting and filling machine





Mini electronic capsule counting and filling machine.

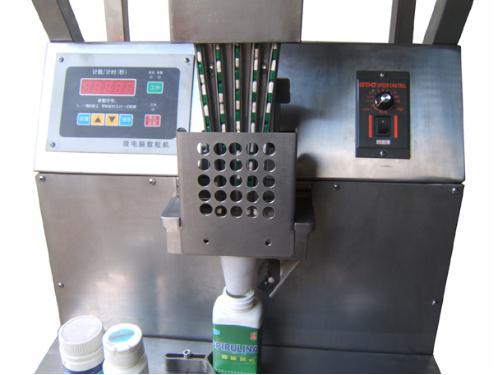

PLC control, touch key operating system count automatically, put bottle by manual and fill medicine automatically, high differentiate rate, fast responding speed, count accurately, and it can set the filling quantity in the control board.
This machine is widely applied for capsule counting for small scale production in hospital,
Small pharmaceutical factory etc.


Technical Parameters

Counting capacity

500 - 600 capsules/min

Suitable size

Capsule: 00#, 0#, 1#, 2#, 3#, 4#

The machine uses locked capsule.

Motor power

60YY-60, 90PK, 1:10

Overall size

580 x 450 x 1100 mm

Net weight

52 kg
