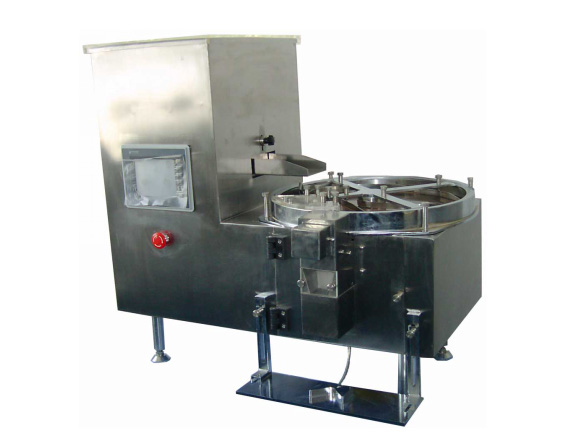

SPE-360 Mini electronic counting and filling machine



Mini electronic counting and filling machine
CCD sensitization technology, PLC control, human and machine interface operating system count automatically, put bottle by manual and fill medicine automatically, high differentiate rate, fast responding speed, count accurately, it is no need to change mould when change the type of medicine. And it can set the filling quantity in the touch screen.
This machine is widely applied for tablet or capsule counting for mini production in hospital, small pharmaceutical factory etc.


Technical Parameters

Diameter of counting plate

360 mm

Applied size

Tablet diameter: 5 mm - 12 mm

Capsule: 0# - 5 #

Hole quantity of the plate

5 - 100 optional

Production capacity

12 - 26 bottle(bag)/min, 20 m - 300 ml,

60000 pcs /hour

Motor power

550 W

Power supply

AC, 220V/50HZ 1 phase


100 kg

Overall size

900 x 600 x 900 mm
