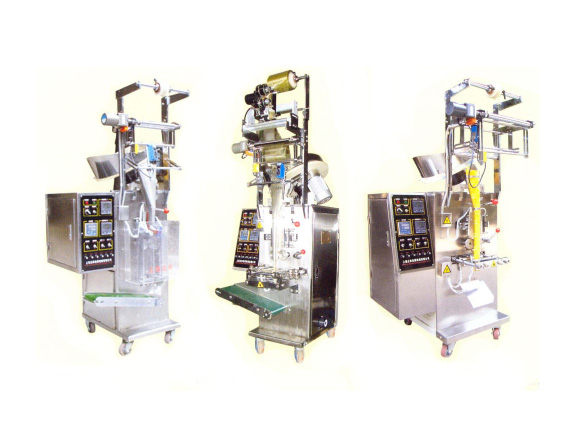

DCP series  Tablet/capsule automatic packing machine

Descriptions

This machine is applied to pack solid piece products with bag, such as tablets and capsules etc.

Features

- Bag-making, measuring, filling, sealing, cutting, date inking, easy-off gap forming and Counting are all finished automatically, high effective and sanitary.
- Either under set length control or photoelectric color tracing, bag length is set and cut In one step. Time and film saving.
- The temperature is under independent PID control, more suitable for different packing Materials, the tolerance is ±1%.

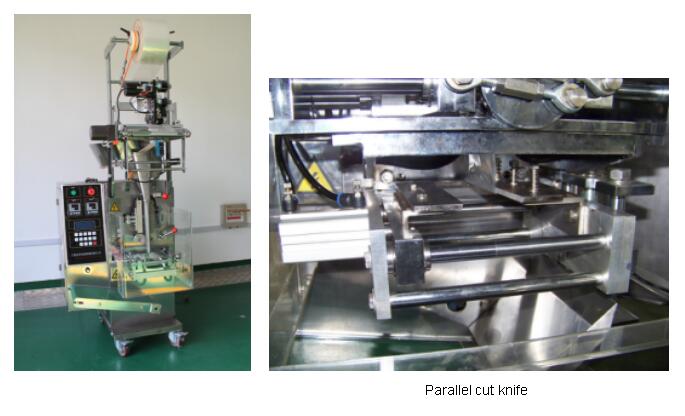

- Equip easy tear-off gap device, so there is an easy tear-off gap on each finished product.
- The driving system is simple and reliable, and maintenance is easy.
- Main parts are made of stainless steel, meet the GMP standard.
- Automatic self support lubricating system, the machine can continuous more than 24 Hours.
- Applicable material should be composite film like: PET/PE, Paper/PE, PET/AL (PET-AL), PE, OPP/PE etc.

Technical Parameters
