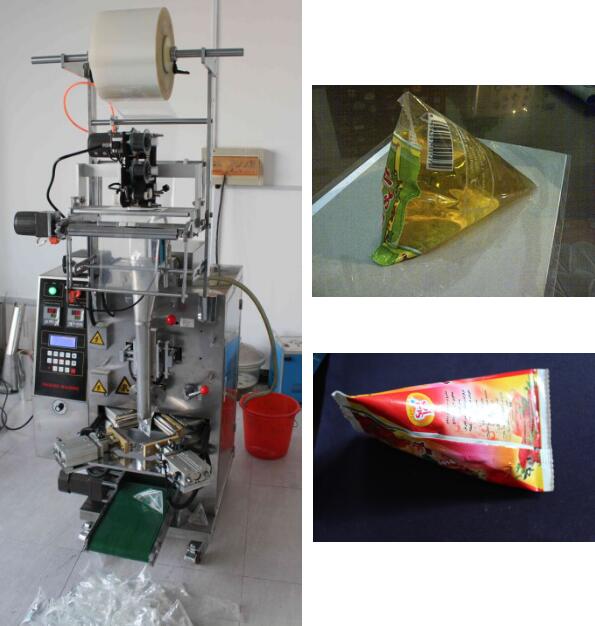

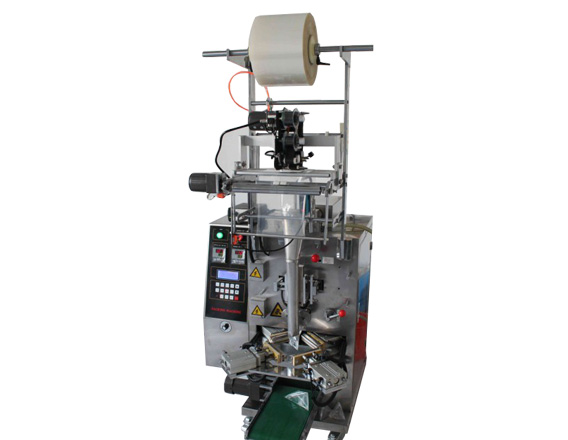

DCJS - 300  Automatic triangle-bag packing machine





This machine is applied to pack liquid or semiliquid materials with triangle-bag, such as oil, Jam, cosmetic (shampoo, cream) and honey etc.



- Bag-making, measuring, filling, sealing, cutting, date inking, easy-off gap forming and Counting are all finished automatically, high effective and sanitary.
- Either under set length control or photoelectric color tracing, bag length is set and cut In one step. Time and film saving.
- The temperature is under independent PID control, more suitable for different packing Materials, the tolerance is ±1%.
- Equip easy tear-off gap device, so there is an easy tear-off gap on each finished product.
- The driving system is simple and reliable, and maintenance is easy.
- Main parts are made of stainless steel, meet the GMP standard.
- Automatic self support lubricating system, the machine can continuous more than 24 Hours.
- Applicable material should be composite film like: PET/PE, Paper/PE, PET/AL (PET-AL), PE, OPP/PE etc.


Technical Parameters



Sealing type


Method of measurement

Needle valve pump

Range of measurement

0-100 ml

Packing speed

20 - 40 bag/min

Bag size

W/10-120 mm, L/30-175 mm


1.6 KW

Power supply

AC,380V/50HZ 3 phase or customization

Net weight

320 kg

Overall size

1010x730x1780 mm
